Radiator Grille




Radiator Grille

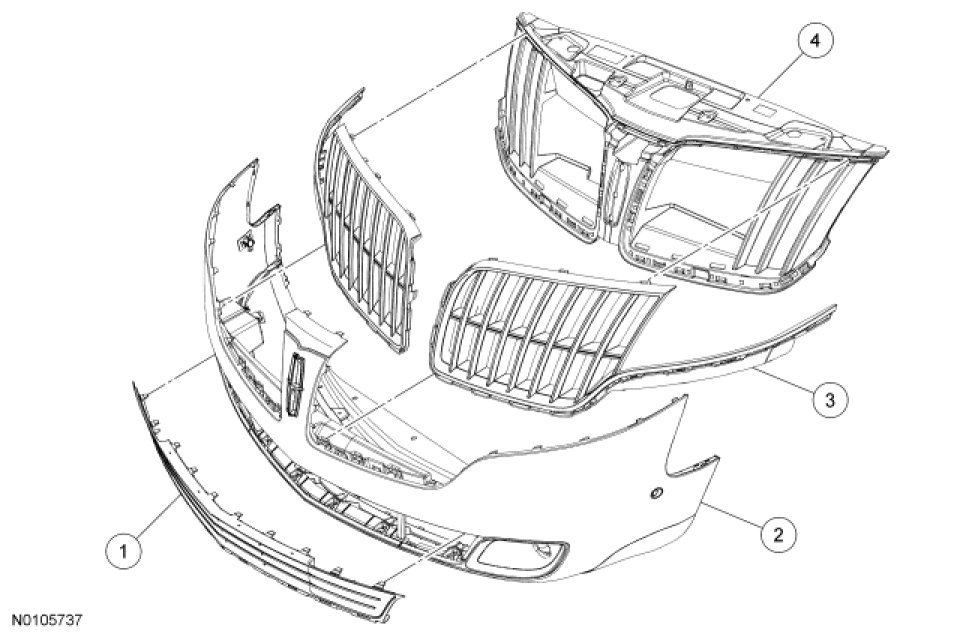

Removal and Installation

All vehicles

1. Remove the front bumper cover. For additional information, refer to Bumpers Service and Repair.

Upper radiator grille

2. Press the tabs on the radiator grille reinforcement outward to release it from the bumper cover and remove the radiator grille reinforcement.

3. Press the tabs on the upper radiator grille to release it from the bumper cover and remove the upper radiator grille.

Lower radiator grille

4. Press the tabs on the lower radiator grille inward to release it from the bumper cover and remove the lower radiator grille.

All vehicles

5. To install, reverse the removal procedure.
