Register - Passenger Side




Register - Passenger Side

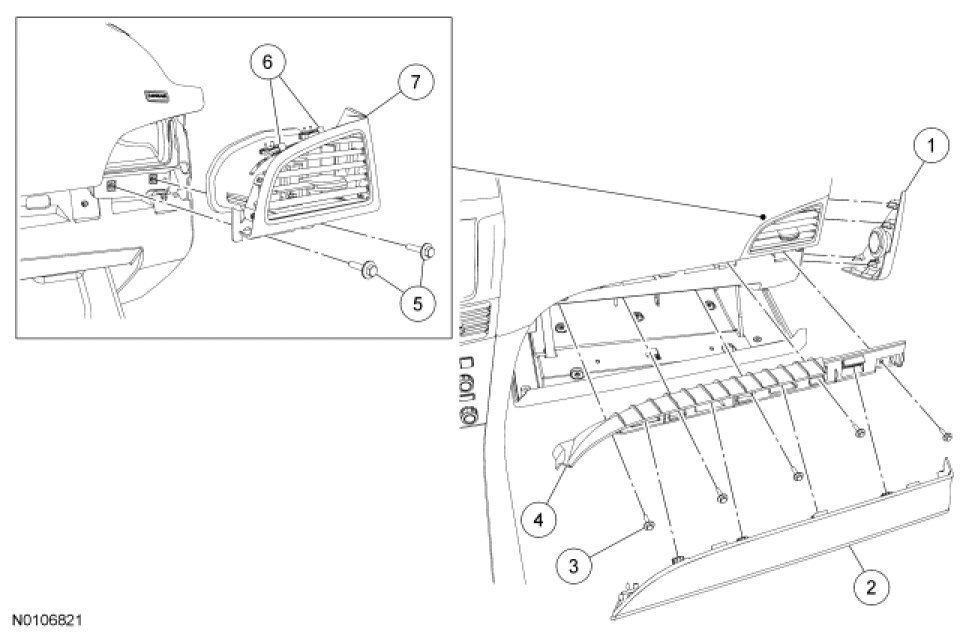

Removal and Installation

1. Remove the RH instrument panel side trim panel.

2. Open the glove compartment.

3. Remove the RH instrument panel finish applique.

4. Remove the 5 RH instrument panel finish moulding screws and remove the moulding.

5. Remove the 2 RH register screws.

6. NOTE: The 2 RH register clips must be detached with a slim pocket-type screwdriver or similar. Use of a larger tool will distort or damage the instrument panel padding.

Using a suitable tool, release the 2 clips on the top of the RH register and remove the register.

7. To install, reverse the removal procedure.
