Remote Control: Service and Repair

Steering Wheel Controls - Navigator

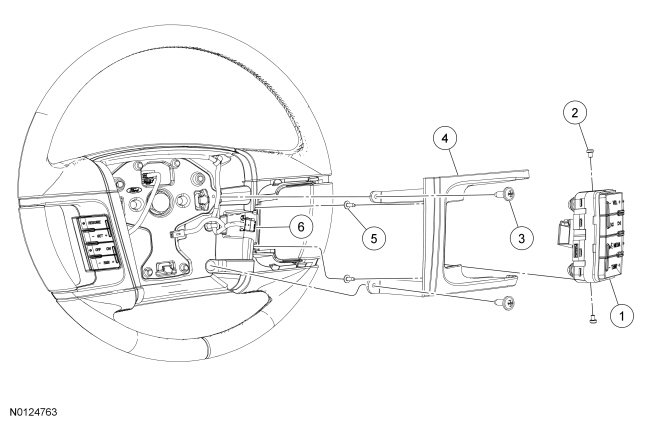

Removal and Installation

1. Remove the steering wheel. For additional information, refer to Steering Column Removal and Replacement.

2. Detach the pushpin and position the steering wheel controls wiring harness aside.

3. Remove the 2 rear steering wheel controls bezel-to-steering wheel screws, the 2 front steering wheel controls bezel-to-steering wheel screws and remove the steering wheel controls bezel.

4. Disconnect the steering wheel controls electrical connector.

5. Remove the 2 screws from the steering wheel controls bezel and remove the steering wheel controls switch.

6. To install, reverse the removal procedure.
