Entertainment System Control Panel: Service and Repair




Rear Auxiliary Audio Controls

Removal and Installation

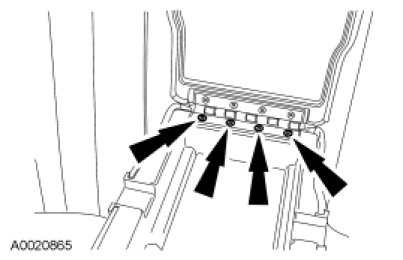

1. Open the rear seat armrest and remove the 4 screws.





2. Position the armrest tray aside.
- Remove the 2 rubber bumpers.

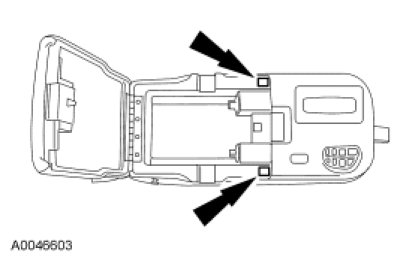

- Remove the 2 screws and disengage the clips.

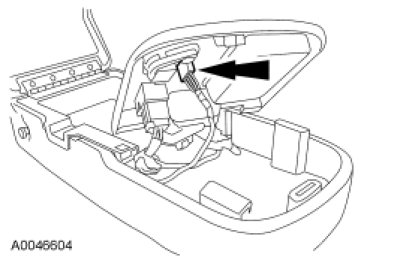

3. Disconnect the electrical connector and remove the armrest tray.

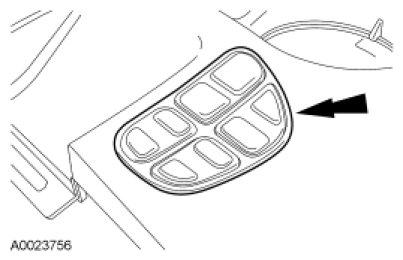

4. NOTE: Use an appropriate tool to pry the switch out.

Remove the rear auxiliary audio controls.





5. To install, reverse the removal procedure.
