Grille: Service and Repair

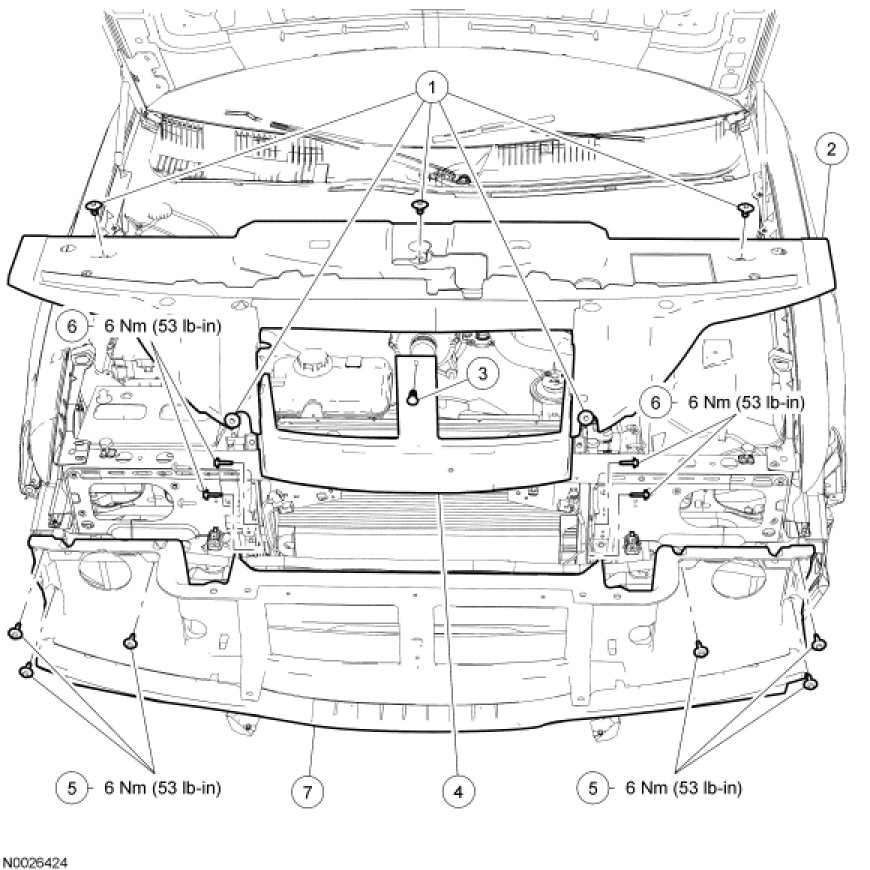

Radiator Grille Opening Panel Reinforcement









Removal and Installation

1. Remove the 5 pin-type retainers and the radiator sight shield.

2. Remove the pin-type retainer and the grille opening panel reinforcement cover.

3. Remove the front bumper cover. For additional information, refer to Bumpers Service and Repair.

4. Remove the headlamps. For additional information, refer to Exterior Lighting Service and Repair.

5. Remove the 6 radiator grille opening panel bolts.
- To install, tighten to 6 Nm (53 lb-in).

6. Remove the 4 radiator grille opening panel bracket bolts.
- To install, tighten to 6 Nm (53 lb-in).

7. To install, reverse the removal procedure.
