Power Mirror Switch: Service and Repair




Exterior Mirror Control Switch









Removal and Installation

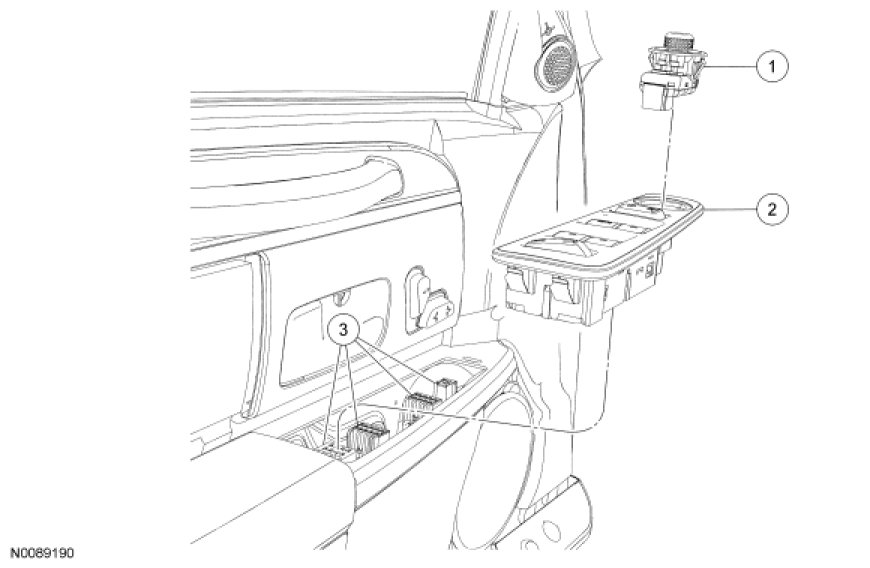

1. NOTICE: Use a shop towel or similar material between the tool and the front door trim panel or damage to the front door trim panel may occur.

Remove the window control switch plate from the front door trim panel.

- Lift at the rear of the window control switch plate.

- Disconnect the electrical connector.

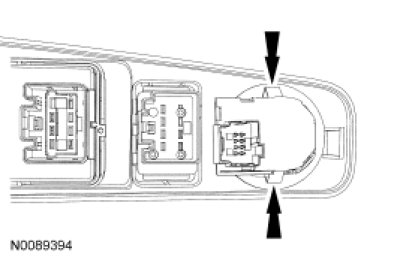

2. Release the 2 exterior mirror control switch locking tabs and remove the exterior mirror control switch.





3. To install, reverse the removal procedure.
