Blower Motor: Service and Repair

Blower Motor

Removal and Installation

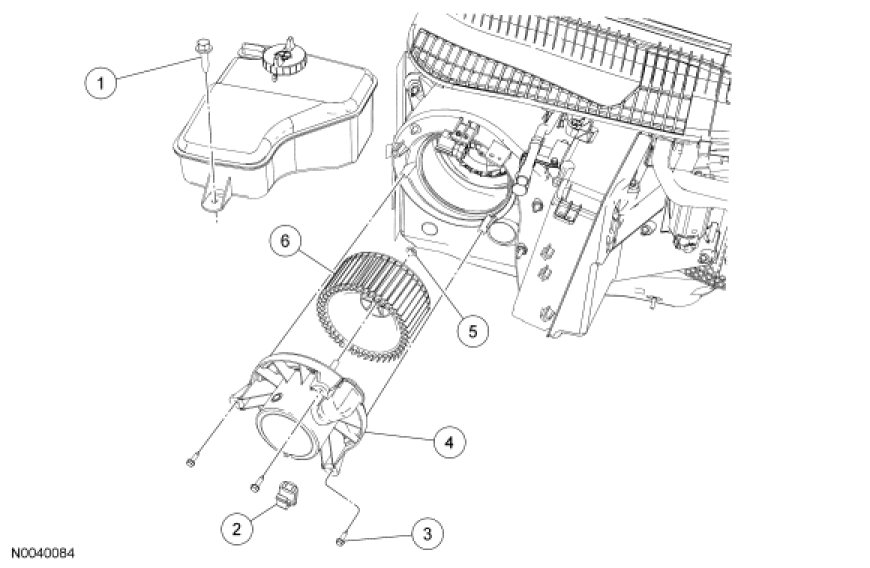

1. Remove the washer fluid reservoir bolt and position the windshield washer fluid reservoir aside.

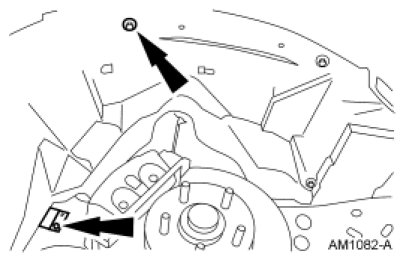

2. Remove the screws from the rear of the RH fender apron and position the fender apron aside.

3. Disconnect the blower motor electrical connector.

4. Remove the 3 blower motor screws.

5. Remove the blower motor.

6. Remove the blower motor wheel clip.

7. NOTICE: Prior to removing a wheel that is to be reused, clean any corrosion from the blower motor shaft to prevent damage to the wheel mounting diameter.

Remove the blower motor wheel.

8. To install, reverse the removal procedure.
