Alignment

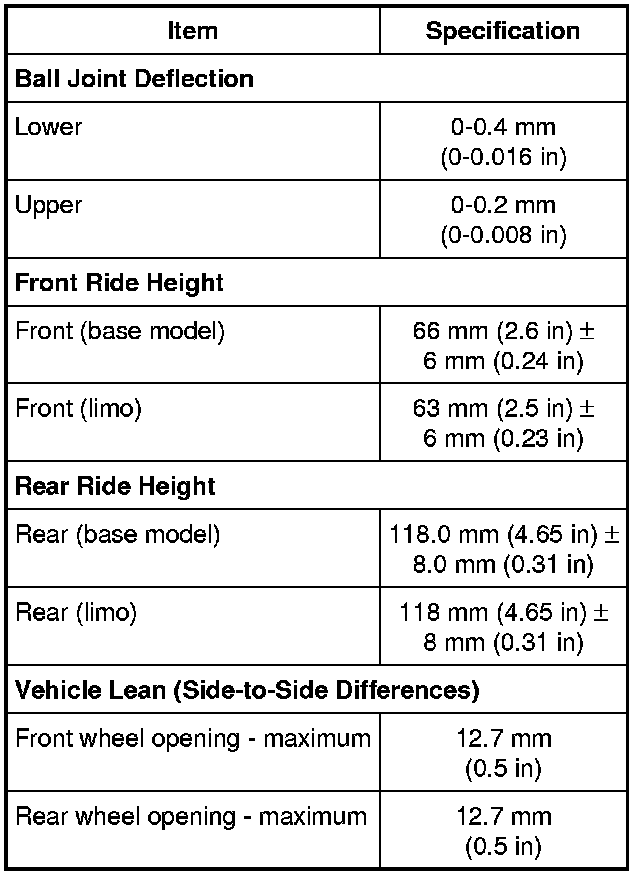

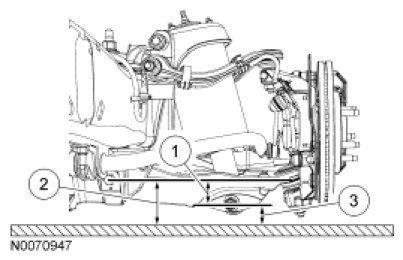

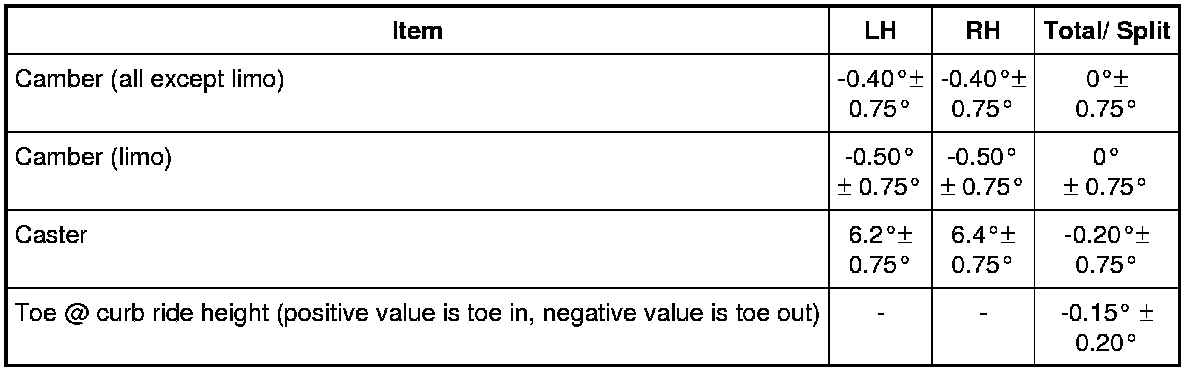

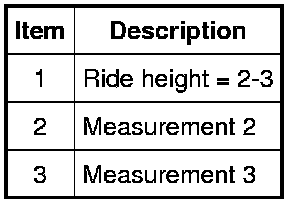

Alignment Specifications General SpecificationsFront Ride Height MeasurementNOTE: Make sure that the vehicle is positioned on a flat, level surface and the tires are inflated to the correct pressure. Vehicle should have a full tank of fuel.

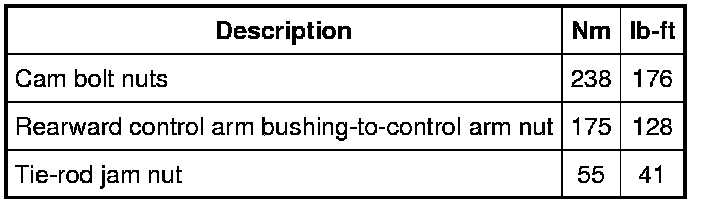

Torque Specifications
