Register - Passenger Side

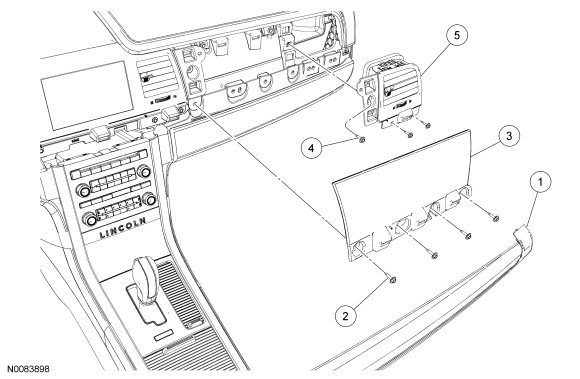

Register - Passenger SideRemoval and Installation 1.
Remove the RH instrument panel finish moulding.
2.
Remove the 4 RH instrument panel finish panel screws and remove the panel.
3.
Remove the 3 passenger side register screws.
4.
Remove the passenger side register.
5.
To install, reverse the removal procedure.
