Auxiliary Blower Motor: Service and Repair




Auxiliary Blower Motor









Removal and Installation

All vehicles

1. Remove the RH quarter trim panel.

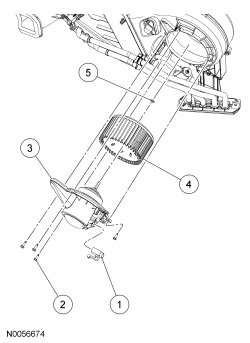

2. Remove the blower motor.
- Disconnect the blower motor electrical connector.

- Remove the blower motor screws.

- Remove the blower motor.


Expedition or Navigator only

3. Remove the blower motor wheel.
1. Remove the blower motor wheel clip.

2. Remove the blower motor wheel.






All vehicles

4. To install, reverse the removal procedure.
