Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
1982
>>
B Series Truck L4-2000 1970cc
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
California
California

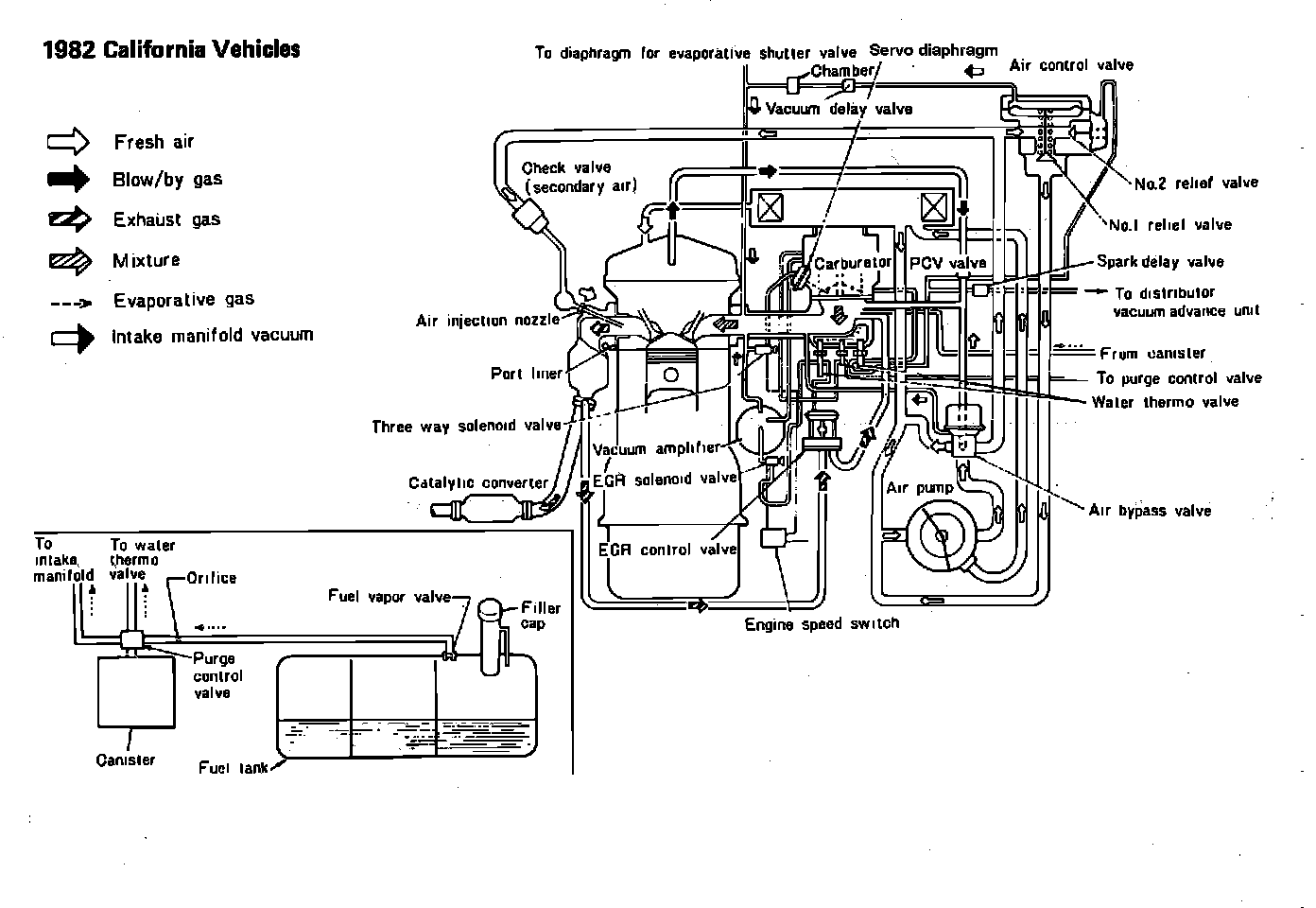

Fig. 2 Emission control system:
