Testing W/Voltmeter

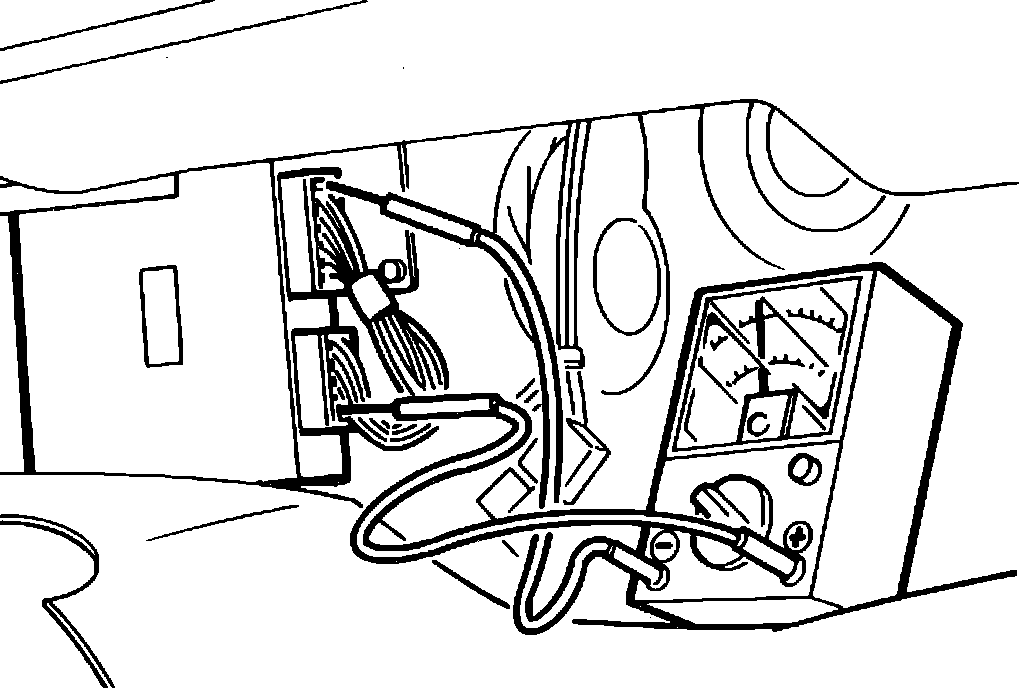

Fig. 17 Testing Control Unit W/Voltmeter:
WARNING: Do not start engine. 1.
Connect voltmeter to
control unit Fig. 17.

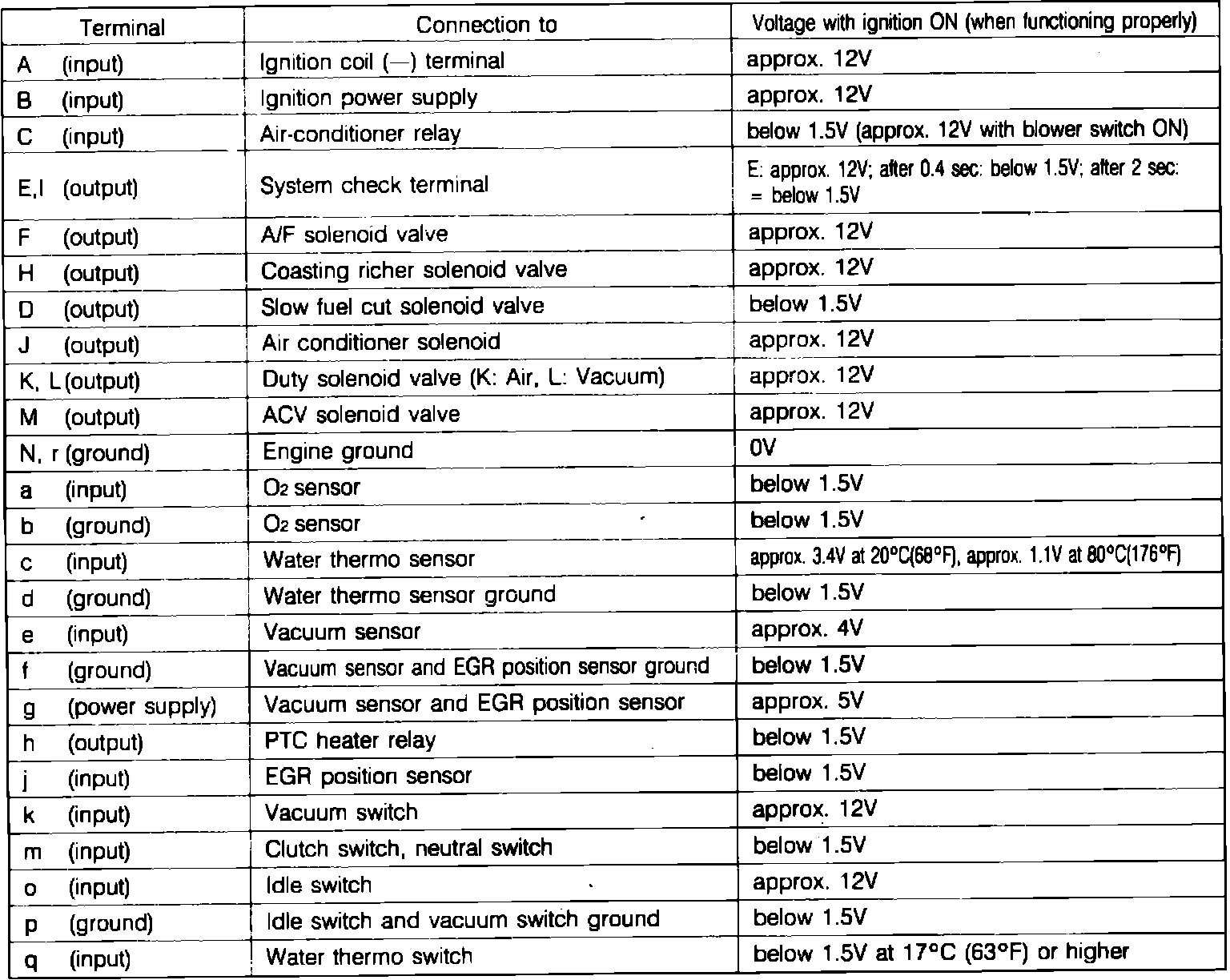

Fig. 3 Engine control unit testing procedure chart.:
2.
Measure voltage at each terminal and compare to values listed in
Fig. 3.
