Door Lock Switch - Modification

Category 5
Applicable Model/s 1983 626
Subject DOOR LOCK SWITCH MODIFICATION
Bulletin No. 057/83
Issued 6/29/83
Revised

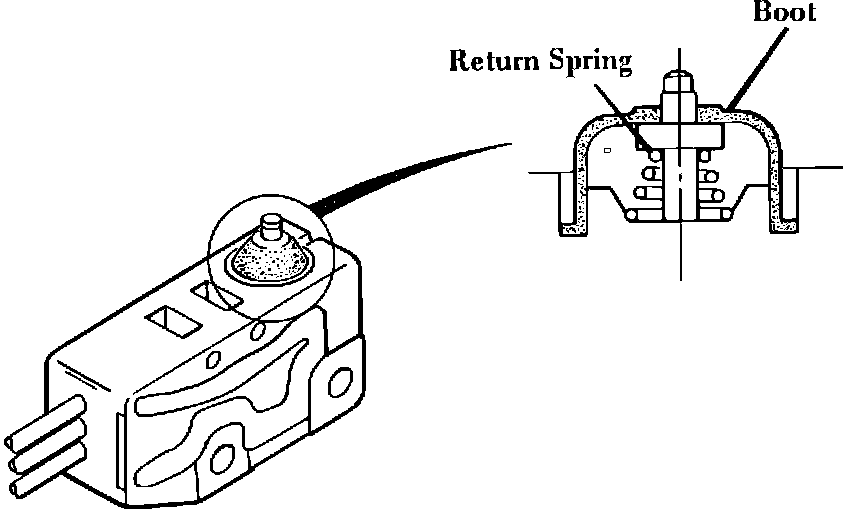

Return Spring and Boot For Door Lock:




DESCRIPTION

Ensuring the switch to return to original position in a cold climate, an additional return spring has been installed as shown since the production in March, 1983.

VIN OF PRODUCTION CHANGE

Sedan: JM1GC221 D1516396 March, 1983
Hatchback: JM1GC241 D1504804 March, 1983 coupe: JM1GC311 D1512592 March, 1983


PARTS INFORMATION


PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY


G03158315B G03158315A Door Lock Switch NEW to OLD
