Inner Weather Strip - Modification

Category 14
Applicable Model/s 1983 626
INNER WEATHERSTRIP MODIFICATION

Bulletin No. 083/83
Issued 6/29/83
Revised

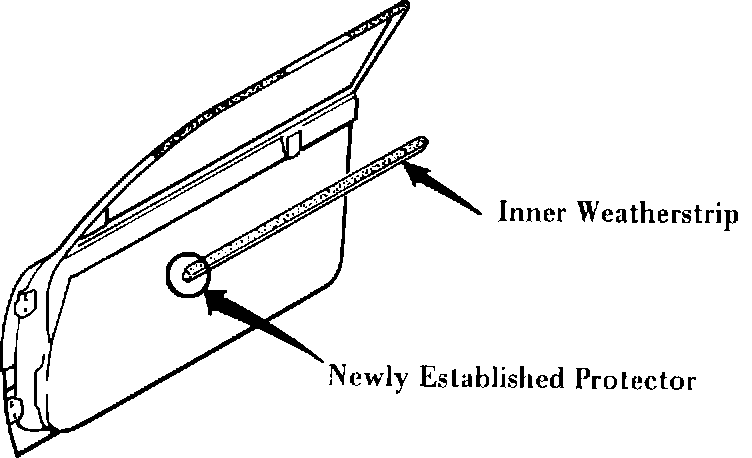

Inner Weatherstrip & Protector:




DESCRIPTION

The inner weather strip has been modified to incorporate a protector at the forward end. Because of this modification, it is no longer possible to interchange the left and right inner weather strip.

VIN OF PRODUCTION CHANGE

Sedan: JM1GC221 D1507445 December, 1982
Hatchback: JM1GC241 D1502120 December, 1982
Coupe: JM1GC311 D1504940 December, 1982
PARTS INFORMATION


SEDAN/HATCHBACK


PART NUMBER

QTY

NEW OLD DESCRIPTION NEW OLD INTERCHANGEABILITY

G030 58 821A G030 58 821A Inner Weatherstrip (RH) 1 2 NEW TO OLD

G030 59 821 -- Inner Weatherstrip (LH) 1 - NEW TO OLD


COUPE

PART NUMBER

QTY

NEW OLD DESCRIPTION NEW OLD INTERCHANGEABILITY

G067 58 821A G067 58 821 Inner Weatherstrip (RH) 1 2 NEW TO OLD

G067 59 821 -- Inner Weatherstrip (LH) 1 - NEW TO OLD
