Trunk Lid Garnish - Modification

Category

14
Applicable Model/s

1983 626
Subject

TRUNK LID GARNISH MODIFICATION
Bulletin No. 084/83
Issued 6/29/83
Revised

Trunk Lid Garnish:




DESCRIPTION

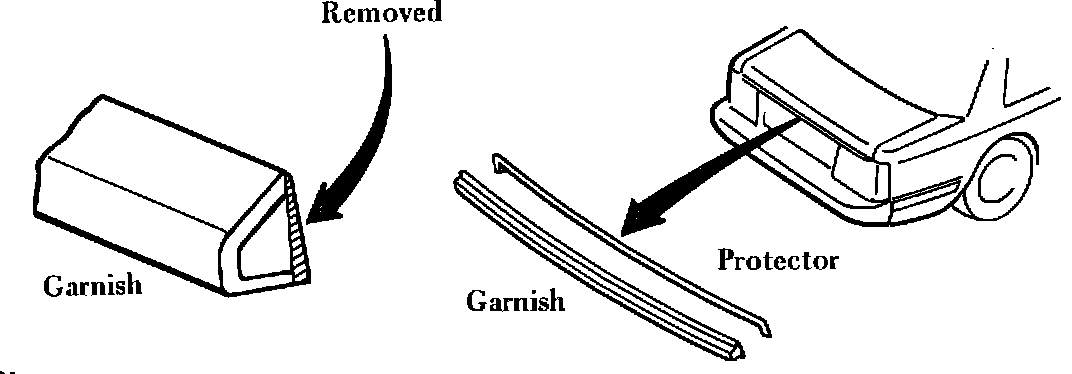

In order to reduce the stress on the trunk lid garnish, both ends of the garnish have been partly removed, as shown in the figure below, with the change in configuration of the protector lip.

VIN OF PRODUCTION CHANGE

Sedan: JM1GC221 D1517096 April, 1983
Coupe: JM1GC311 D1513219 April, 1983


PARTS INFORMATION


PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

G030 50 970F G030 50 970D Trunk Lid Garnish NEW TO OLD

G030 50 972C G030 50 972B Protector NEW TO OLD
