Timing Belt - Component Modification Summary

87mazda03

Category Applicable Model/s Subject Bulletin No. 029/87
1 '84 626 TIMING BELT Issued 11/17/87
'86 323,626,B2000 Revised



DESCRIPTION

Some modifications were made to the timing belt, pulley, tensioner spring, etc. These modifications, however, cause a confusion when dealers try to supply these parts for the customer.

To avoid the confusion, we have summarized the modifications which have been made to the timing belt up to now, and classified the related part numbers by each type of the timing belt as follows.

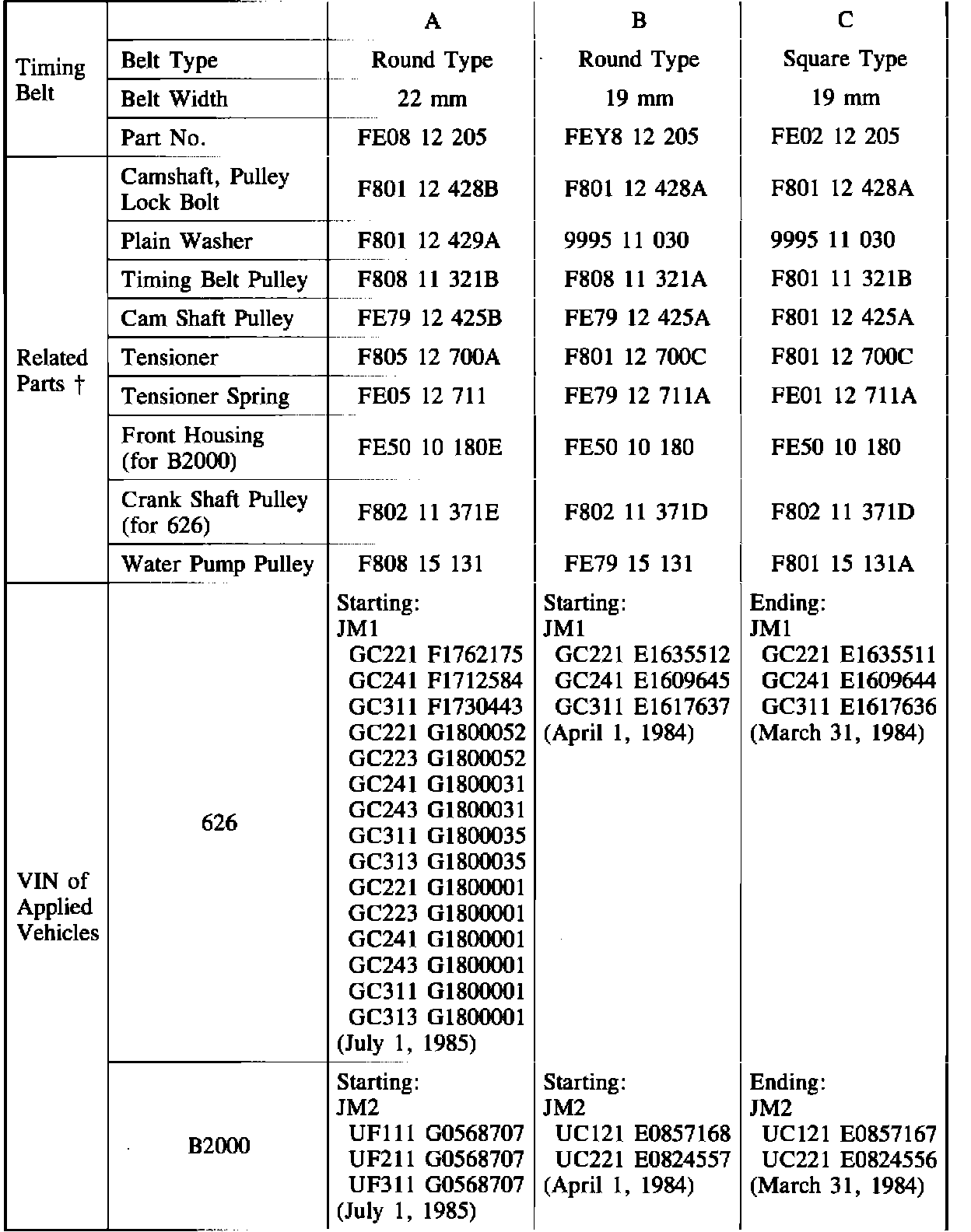

1. 626 and B2000
NOTE:

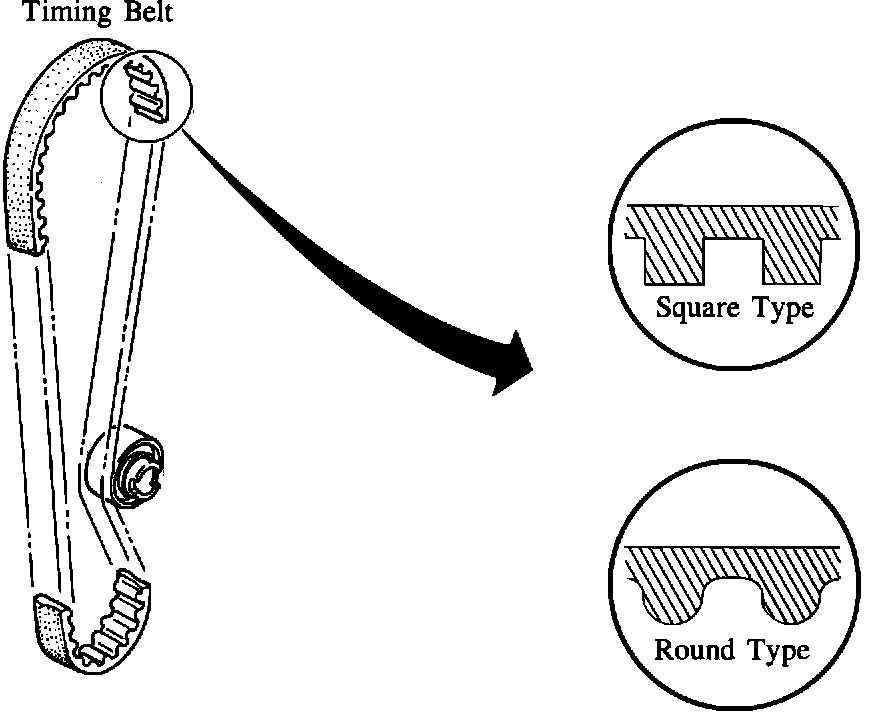

* Related Parts - Parts which have been modified according to the modification of timing belt, and have no interchangeability among the timing belt types A, B and C.

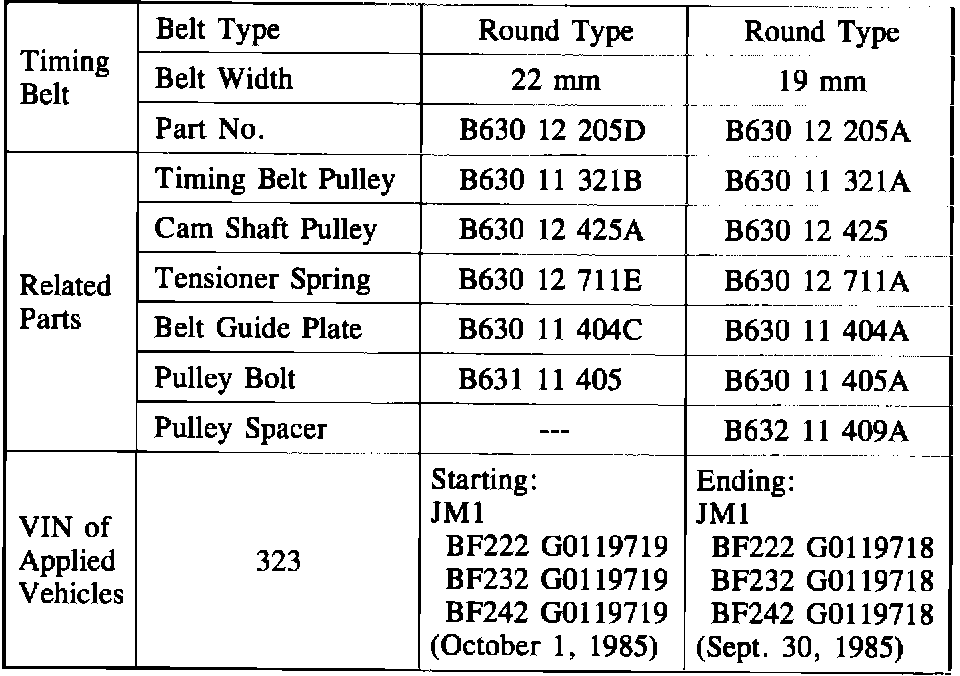

2. 323 (B6 Engine)
