Power Steering Pump Pulley - Modification

83mazda05
Category 10 024/83

9/24/83

1984 626

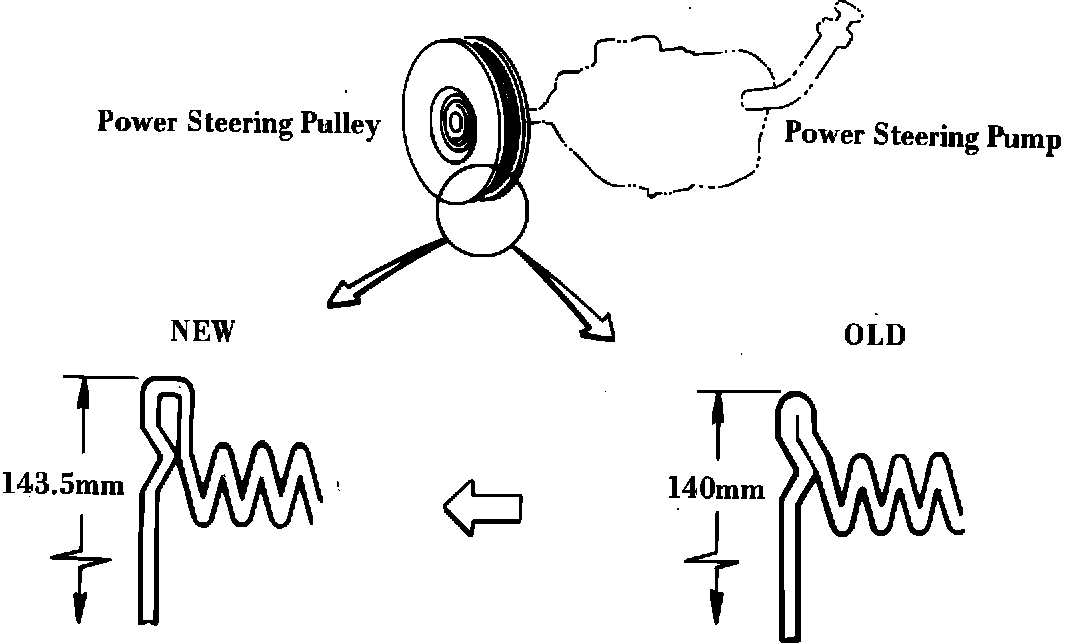

SUBJECT Power Steering Pump Pulley Modification

DESCRIPTION The configuration and diameter of the power steering pump pulley has been changed
since the production date of July, 1983..
Note: There is no part number change.

VIN OF PRODUCTION CHANGE

Sedan: JM1GC221 E1600376 July, 1983
Hatchback: JM1GC241 E1600136 July, 1983
Coupe: JM1GC311 E1600202 July, 1983
