Front Window Molding - Modification

Category
14
Applicable Model/s 1984 626
Subject FRONT WINDOW MOLDING MODIFICATION
Bulletin No. 091/83
Issued 11/9/83
Revised

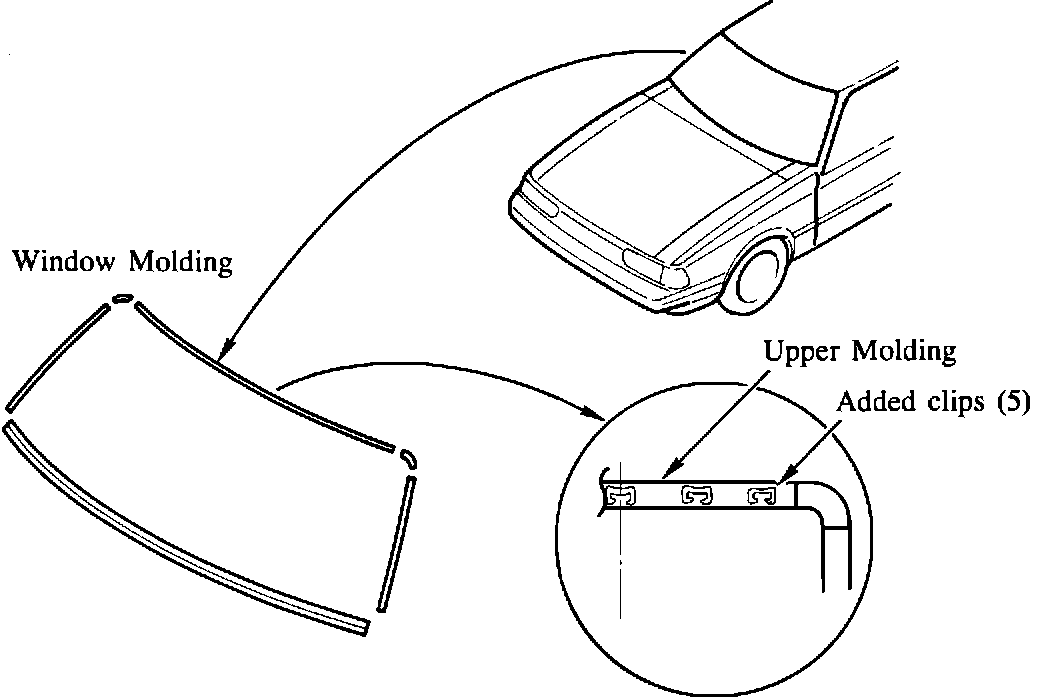

Front Window Molding Location:

DESCRIPTION

To minimize the rattling noise developed from the front window molding, the thickness of the upper molding has been increased from 0.5 mm to 0.6 mm. With this change, five more clips have been added for the upper molding.

VIN OF PRODUCTION CHANGE

Sedan: JM1GC221 E1605831 August, 1983
Hatchback: JM1GC241 E1601878 August, 1983
Coupe: JM1GC311 E1603057 August, 1983
PARTS INFORMATION


PART NUMBER QTY

NEW OLD DESCRIPTION NEW OLD APPLIED MODELS INTERCHANGEABILITY

G030 50 905 G030 50 601A Front Window Mold (Upper) 1 1 Sedan NEW <-- OLD

G030 50 905 G043 50 601B Front Window Mold (Upper) 1 1 Hatchback/Coupe NEW <-- OLD

H001 50 609 H001 50 609 Clip 19 14 All Models NEW <-- OLD
