Clutch Switch: Testing and Inspection

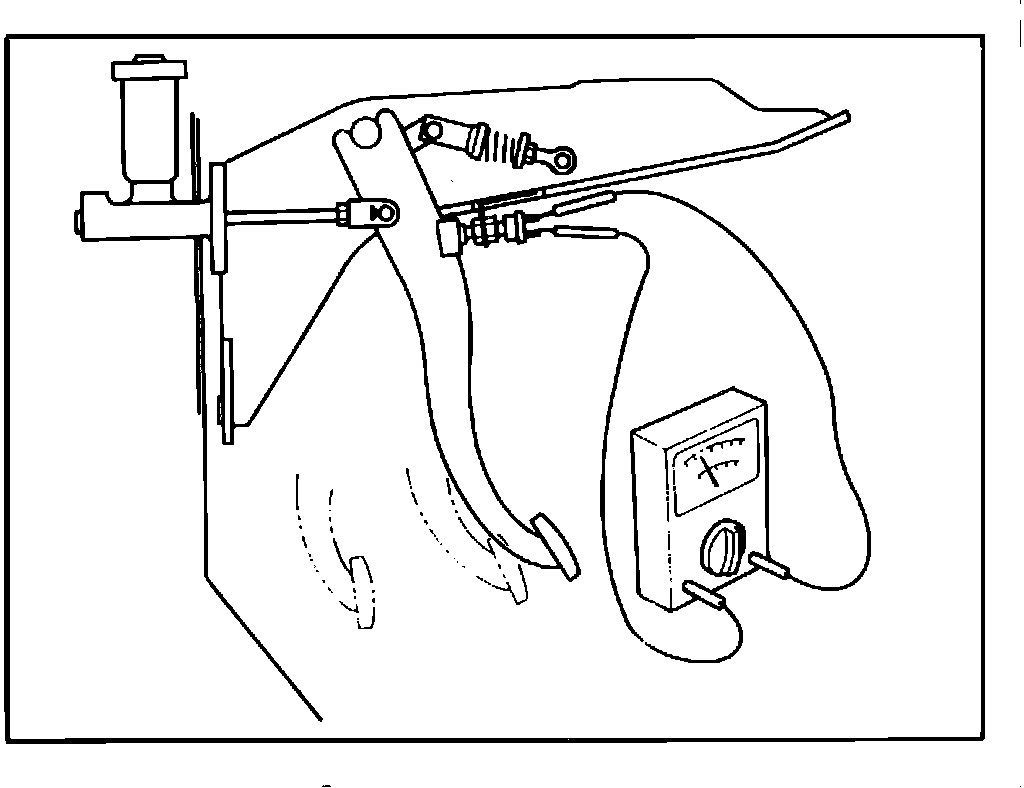

Fig. 12 Checking clutch switch.:
1.
Disconnect electrical connector from
clutch switch.
2.
Check for continuity between
clutch switch terminals using an ohmmeter. Continuity should exist when clutch switch is depressed and should not exist when pedal is released
Fig. 12..
3.
Replace
clutch switch if operation is not as described.
