Computers and Control Systems: Description and Operation

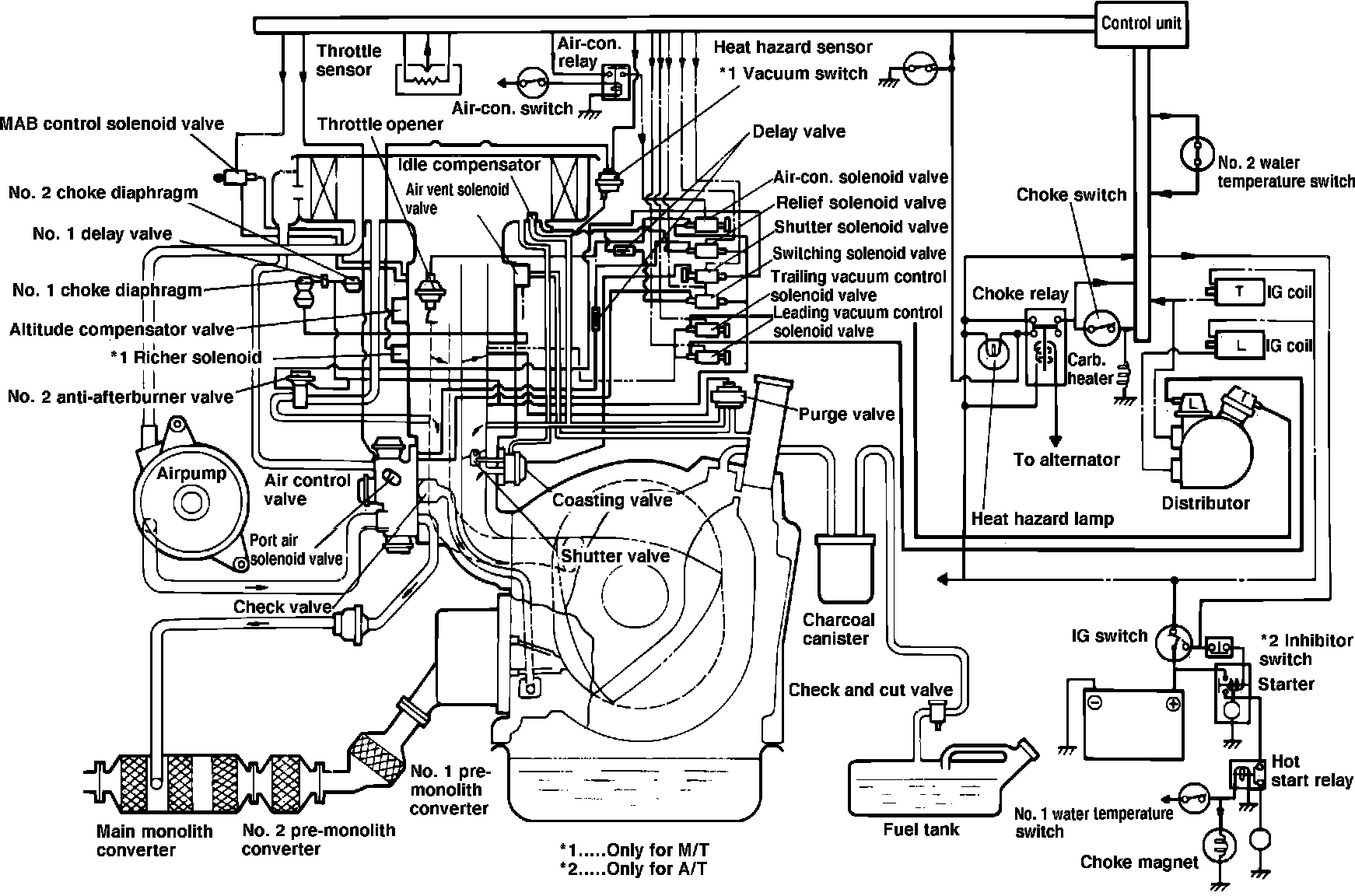

Fig. 22 Emission Controls Diagram. Carbureted models:
The engine control system is used to supplement and aid the conventional emission system. The system consist of an
engine control unit, temperature switches, a choke switch (magnet and
relay), and various control solenoids and valves. These components are used to regulate vacuum via signals from the
control unit.
