Water Valve - Modification

Category Applicable Model/s Subject Bulletin No. 013/85
14 626 & 626 DIESEL WATER VALVE Issued 1/30/85
Revised

WATER VALVE:




DESCRIPTION

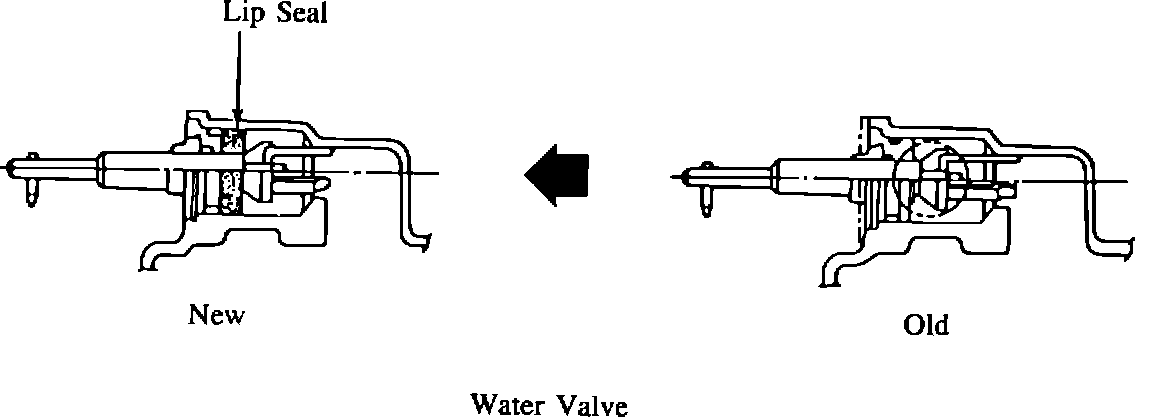

A lip seal has been installed on the water valve in order that the water valve and heater control may operate smoother.
VIN OF PRODUCTION CHANGE

626 Sedan: JM1GC221 E1644322 June, 1984
Hatchback: JM1GC241 E1611795 June, 1984
Coupe: JM1GC311 E1621947 June, 1984
Diesel: JM1GC222 F1600601 November, 1984


PARTS INFORMATION

PART NUMBER

DESCRIPTION INTERCHANGEABILITY APPLIED

NEW OLD MODEL

H002 76 434A H002 76 434 Water Valve

NEW - OLD 626

G082 76 434A G082 76 434 Water Valve
NEW - OLD 626 Diesel
