Mixture Control Solenoid - Slow Cut: Description and Operation

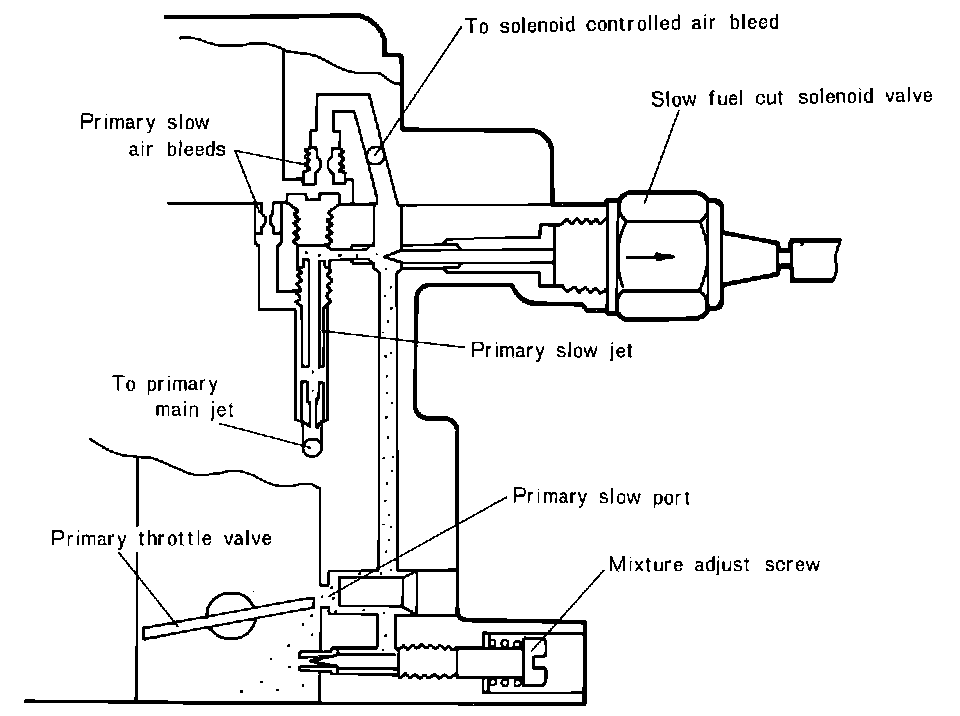

Fig. 5 Slow Fuel Cut System:

This system, Fig. 5. shuts the primary slow fuel passage to prevent run-on and overheating of the exhaust system when the ignition is turned OFF or during deceleration at engine speeds above a predetermined RPM.

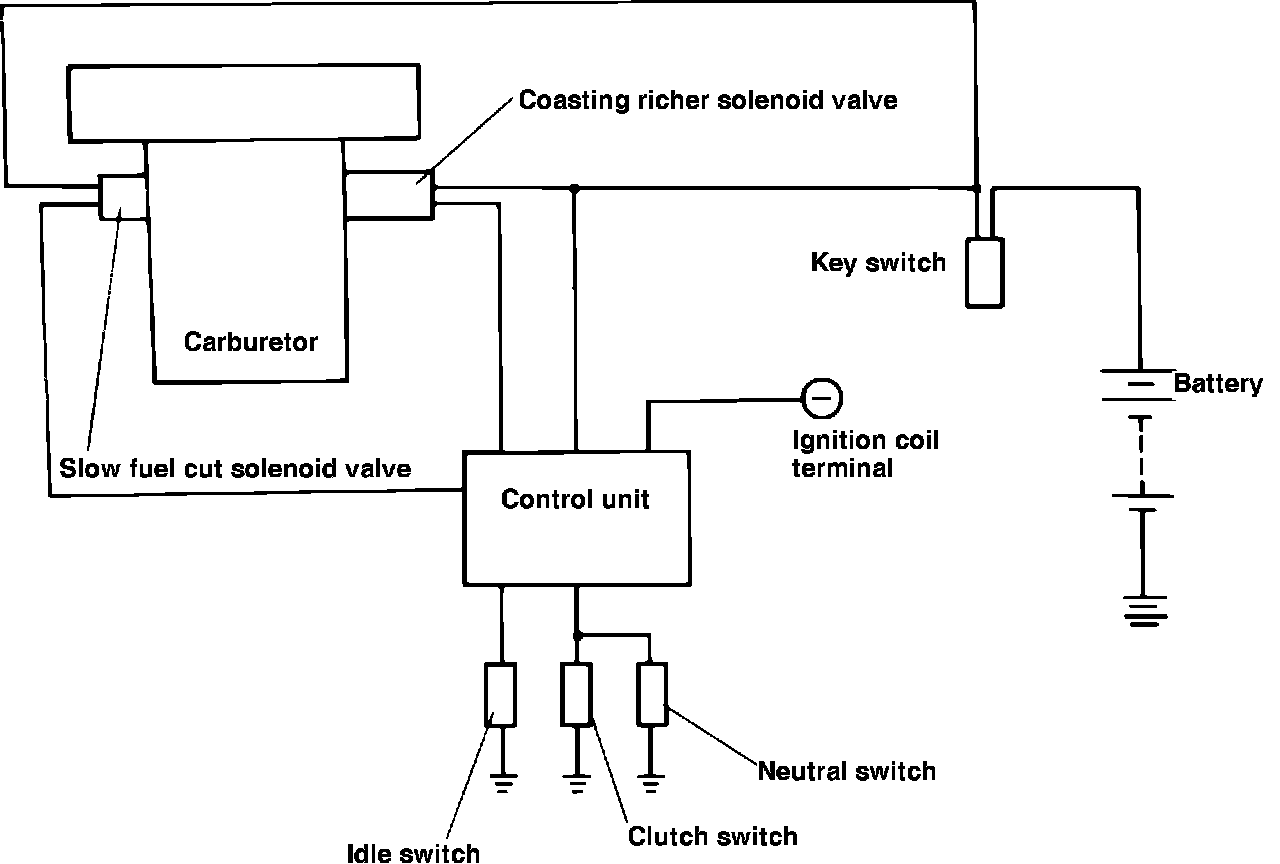

Fig. 9 Coasting richer/slow fuel cut system.:

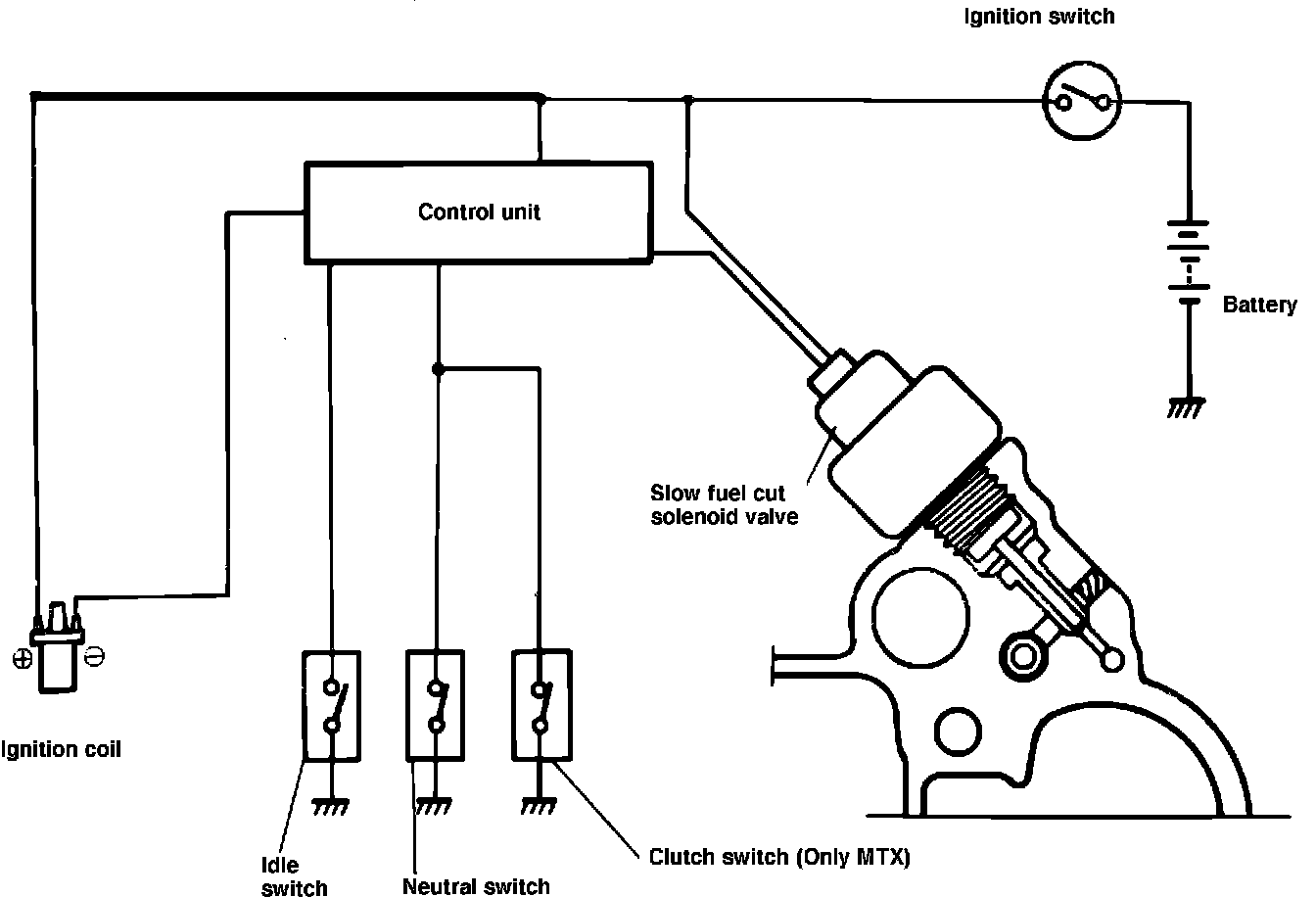

Fig. 4 Slow fuel cut system.:

The slow fuel cut solenoid valve is actuated by electric signals (which are controlled by the control unit) from the idle switch, clutch switch and neutral switch, Fig. 9.
