Intake Air Temperature Sensor

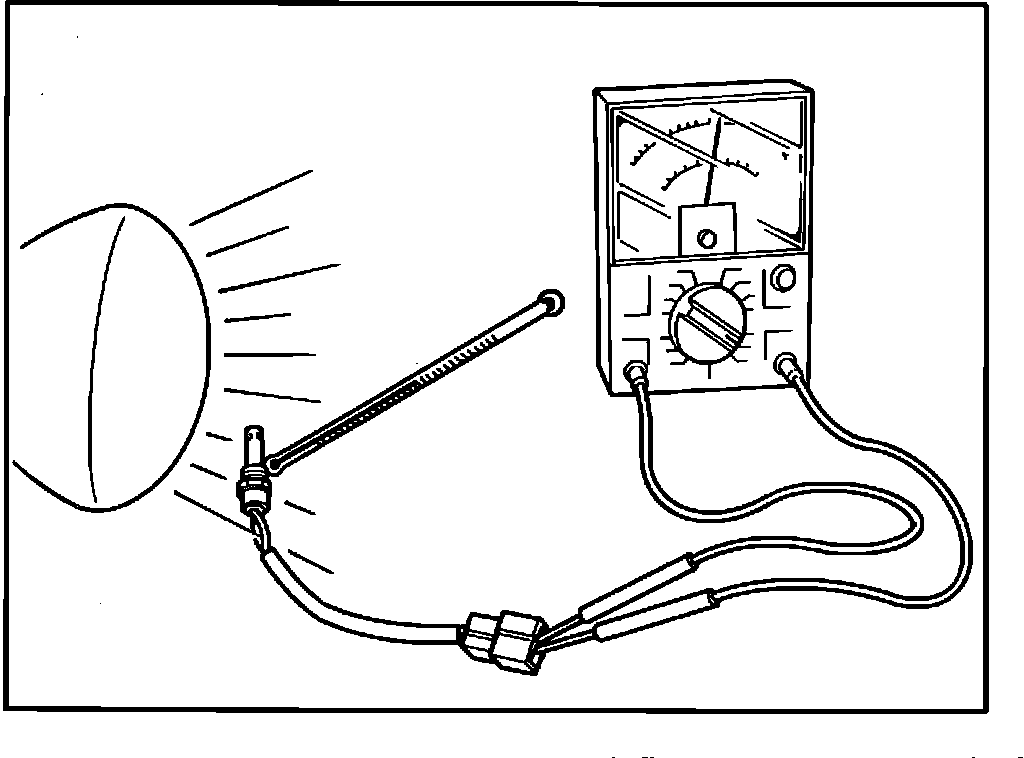

Fig. 19 Testing intake air temperature switch.:

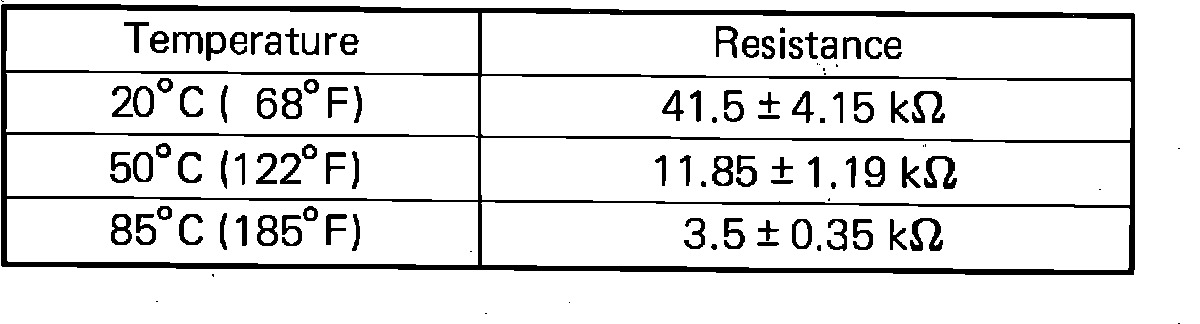

Fig. 20 Resistance values.:





1. Connect circuit tester to sensor terminals Fig 19.
2. Check the calibration of the sensor, Fig 20.
