Fuel Injector - Checks for Proper Installation

87mazda06

Category Applicable Model/s Subject Bulletin No. 033/87
4 ALL EGI FUEL INJECTOR IDENTIFICATION Issued 11/3/87
VEHICLES
Revised 12/28/87







DESCRIPTION

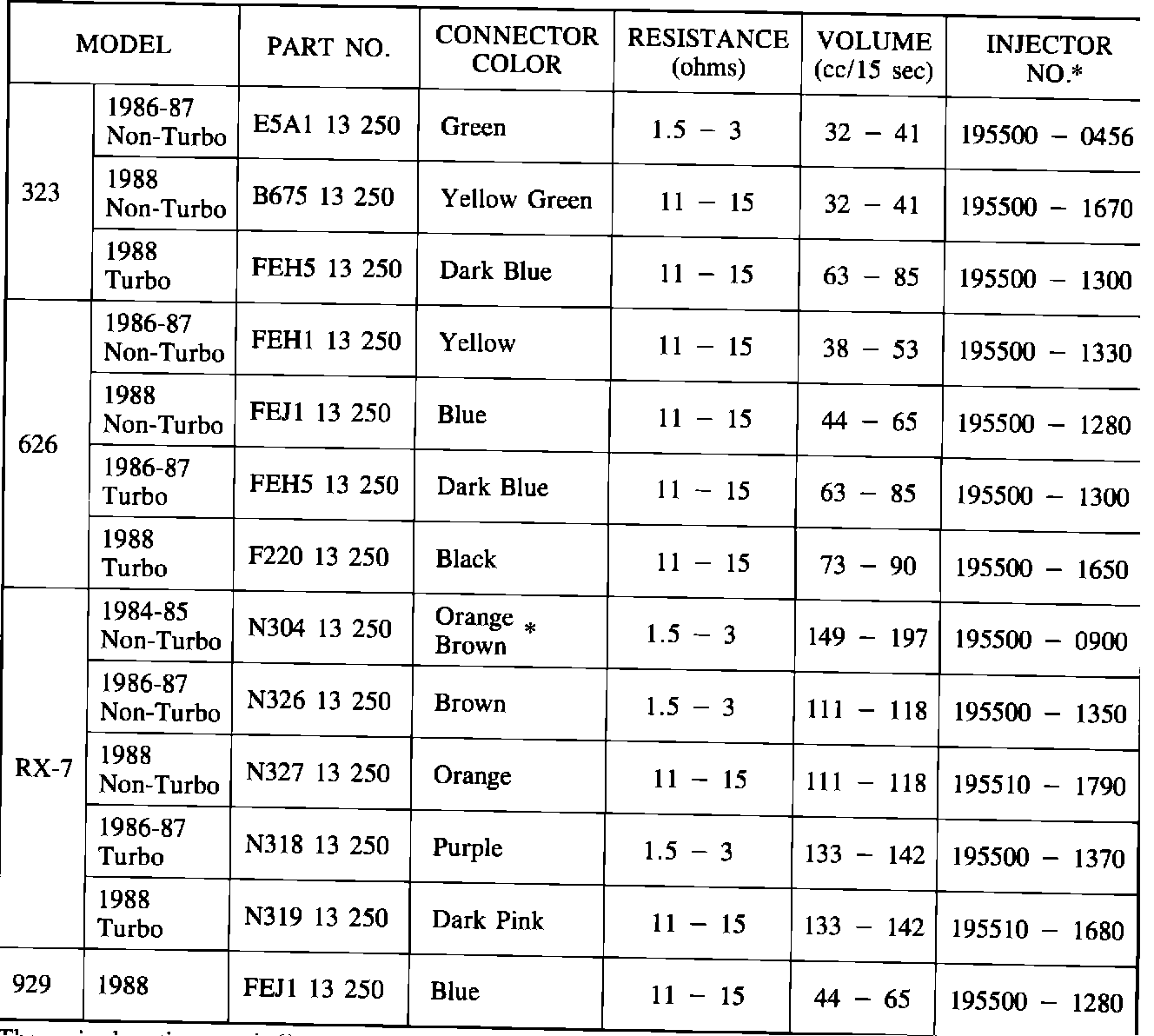

Mazda fuel injectors are color coded for identification purposes. Here are the color codes and models.

If you encounter poor performance, this can be a quick way to see if the proper injectors have been installed.
The revised sections are indicated by an asterisk. Please replace the original bulletin with this revised bulletin.
