Neutral Switch - A/T

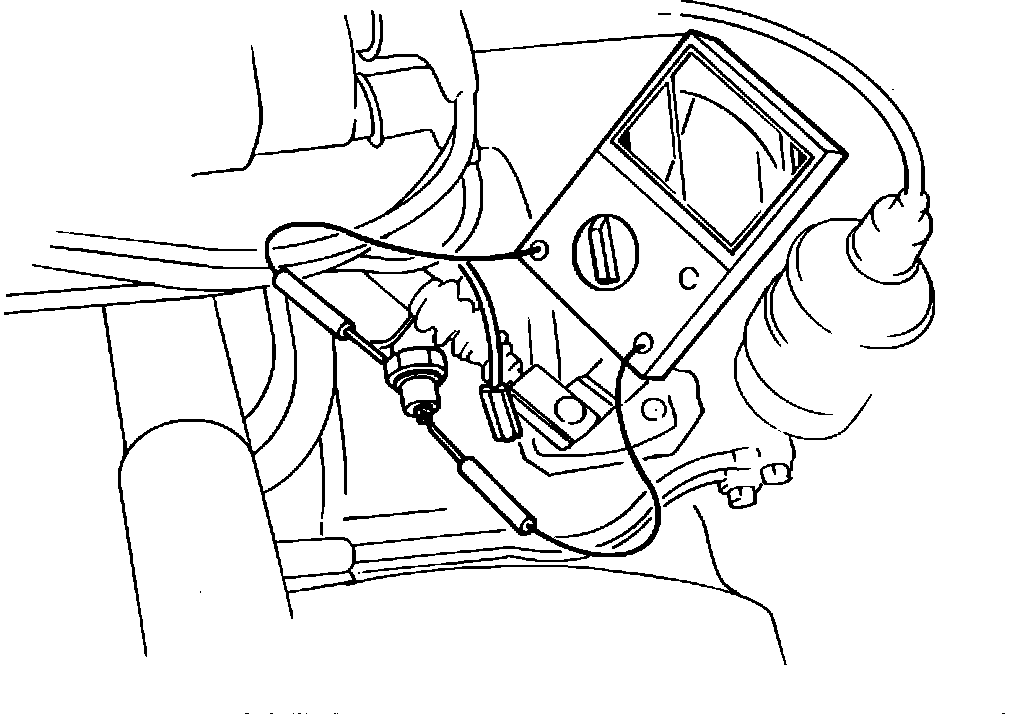

Fig. 25 Connecting A Circuit Tester To Neutral Switch, A/T.:
1. Position the vehicle on a rolling road tester or equivalent.
NOTE: Secure vehicle so as not to allow it to roll forward or to slide.
2. Disconnect the neutral switch connector.
3. Connect a circuit tester to the neutral switch terminal and ground, Fig. 25 and then check the continuity between the switch terminal and ground.

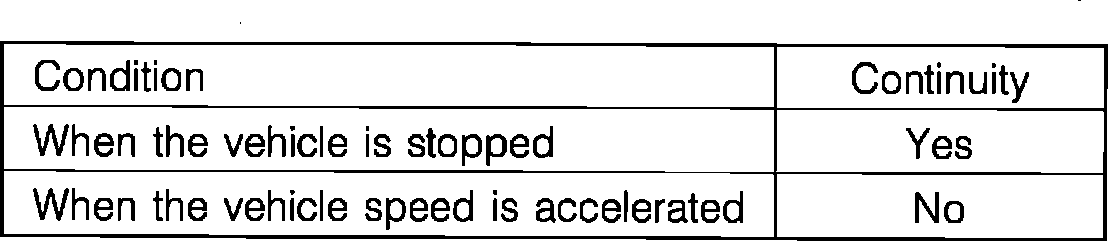

Fig. 26 Neutral Switch Continuity Chart, A/T.:
4. Increase vehicle speed to about 9 mph (15 km/h). Compare the conditions in Fig. 26.
