Neutral Switch

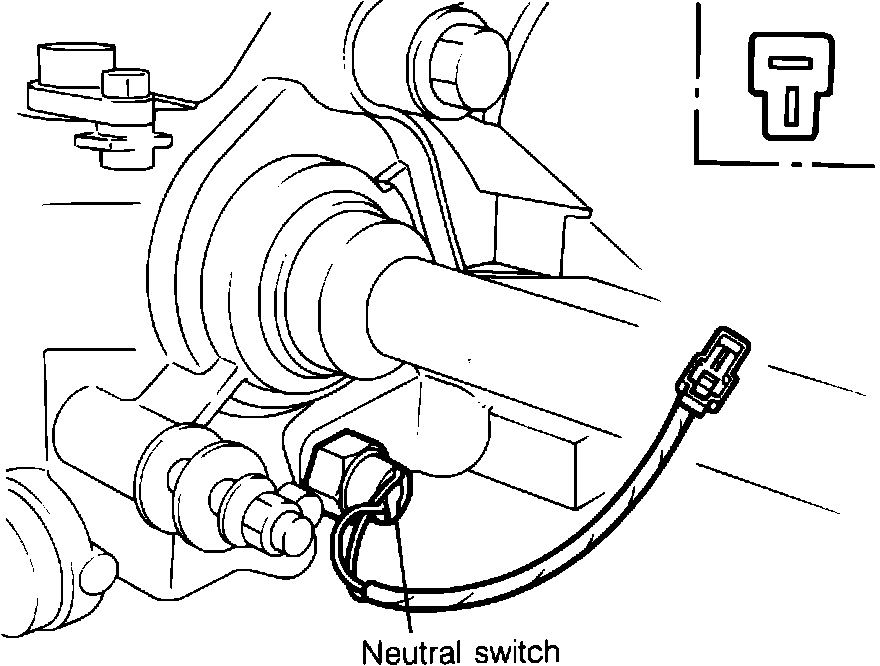

Fig. 36 Neutral Switch Adjustment:

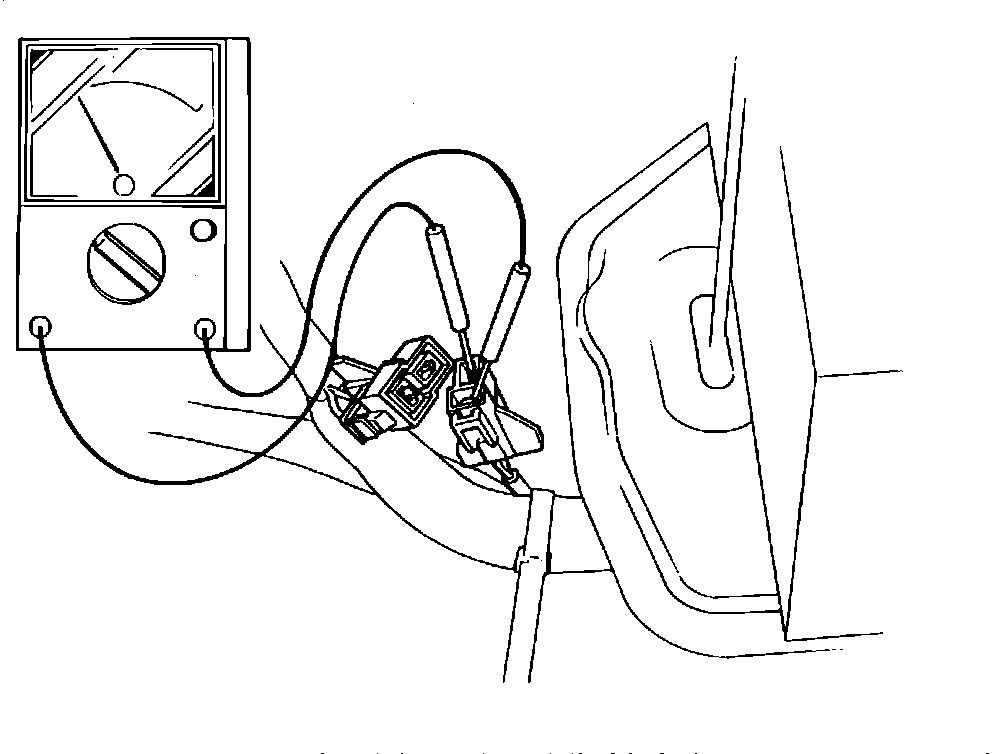

Fig. 22 Connecting A Circuit Tester To Neutral Switch, M/T.:
1.
Disconnect
neutral switch connector
Fig. 36.
2.
Connect a circuit tester to
neutral switch and check continuity between terminals. There should be no continuity in Neutral and there should be continuity in all other ranges.
