Toe-In

FRONT

1. Loosen left and right tie rod locknuts.
2. Turn both tie rods the same amount until specified adjustment is obtained. Both tie rods have right hand threads.
3. Torque tie rod locknut to 25-29 ft.lbs. on GLC and 2 wheel drive 323 models, 25-37 ft.lbs. on 323 models with all wheel drive, 51-58 ft.lbs. on 1984-87 626, 1984-88 RX-7 and Pickup models and 1988 929, or 51-72 ft.lbs. on 1988 626 and MX-6 models.
4. If boot is twisted, loosen boot band and straighten.




REAR

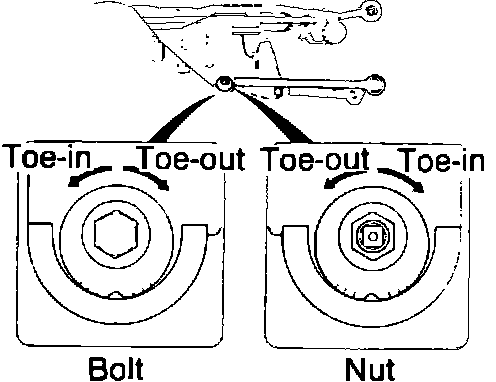

Fig. 5 Rear toe in adjusting bolts. 929:

1. Turn the left and right adjusting cams by the same amount and adjust toe-in until specified value is obtained, Fig. 5.
2. To decrease the toe-in turn adjusting cam clockwise for the right arm or counterclockwise for the left arm.
3. To increase the toe-in, turn the adjusting cam counterclockwise for the right arm or clockwise for the left arm. Amount of toe-in change should be .09 inch for one wheel.
