Electrical Diagrams

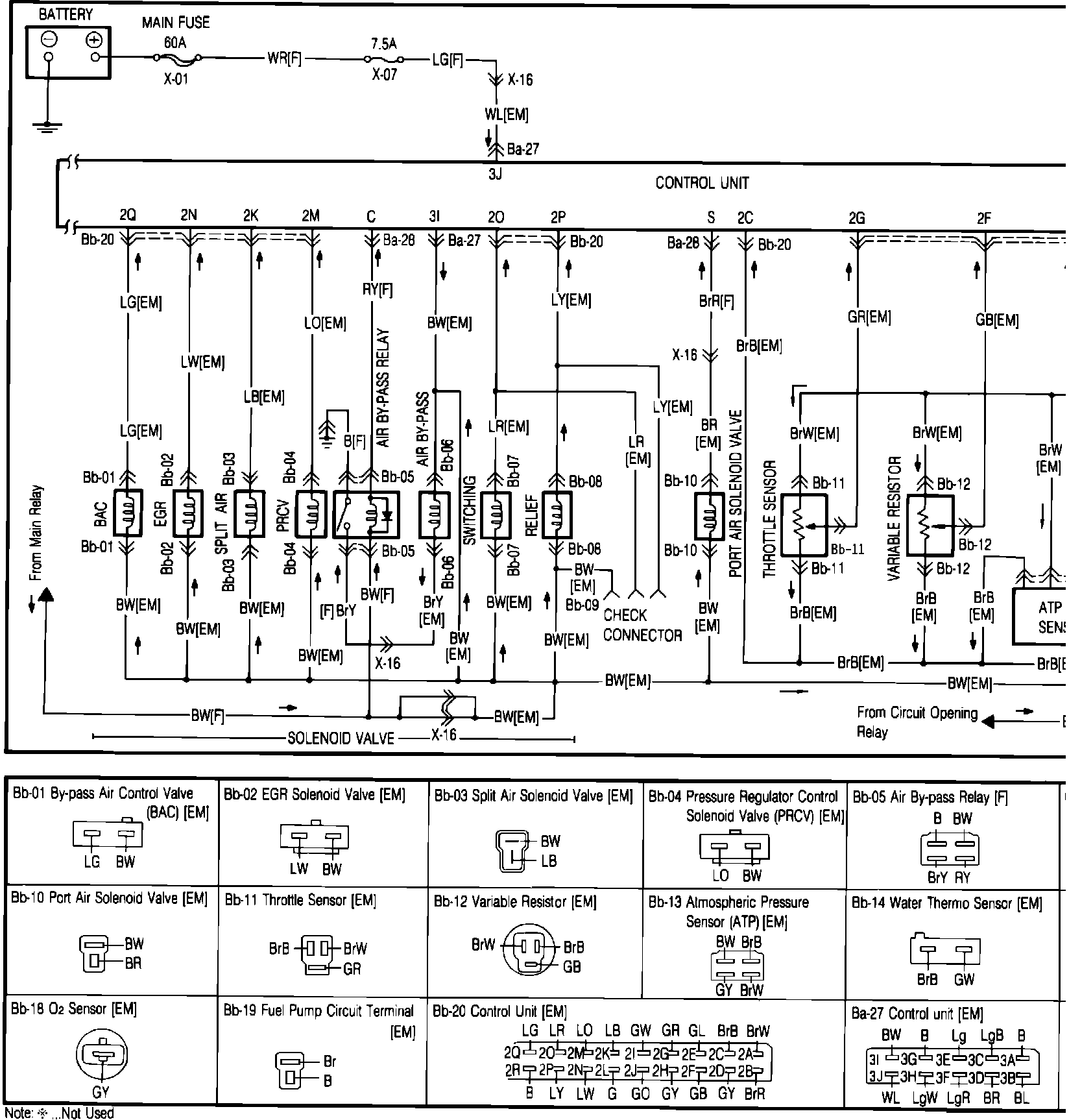

IȊ%Fig. 32ab Emission Control & Fuel Injection Systems, Fuel Pump & Ignition & Sub-zero Starting Assist (exc. Calif.). Systems Wiring Circuit.(Part 1 of 2):

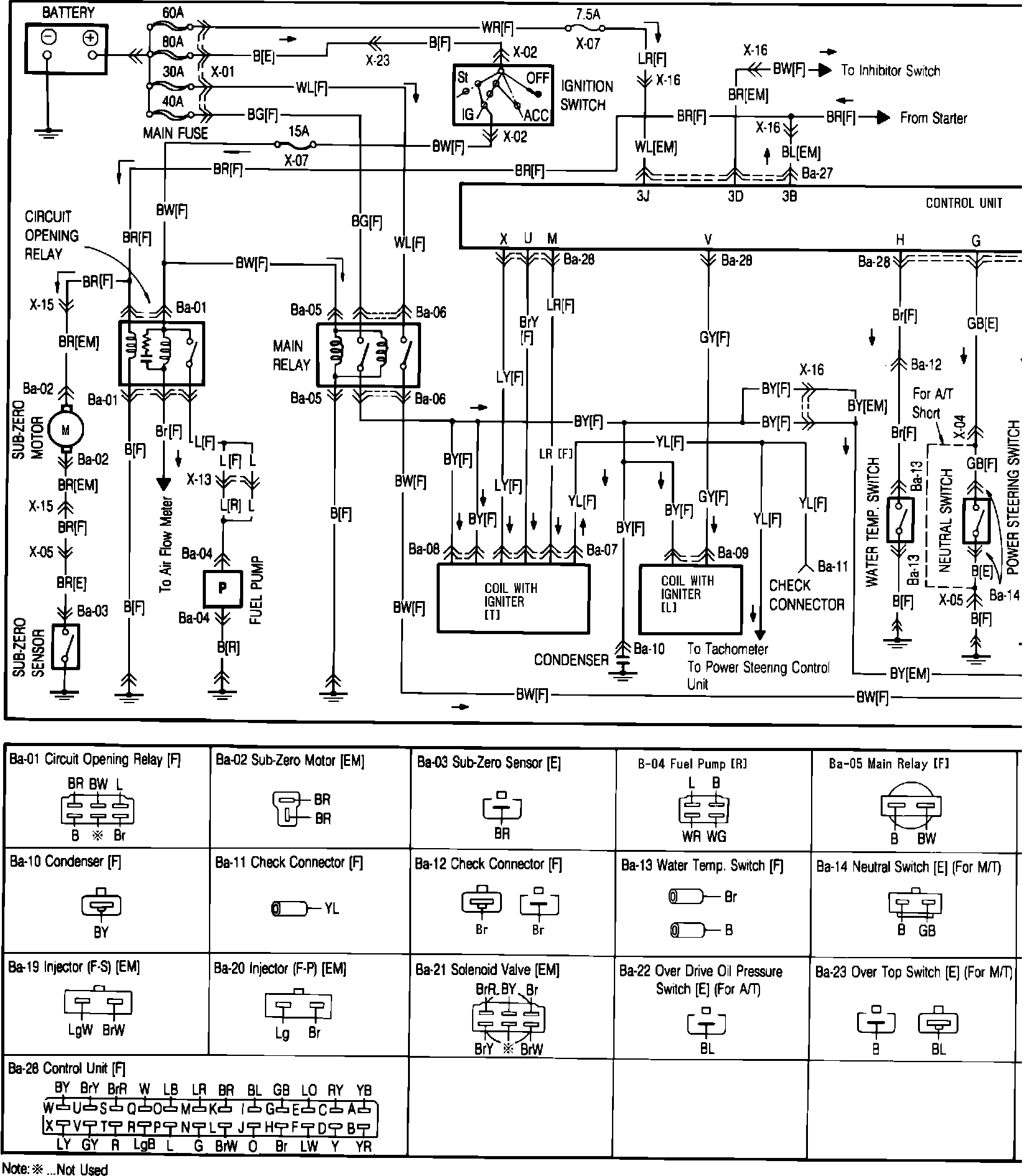

i�%Fig. 32bb Emission Control & Fuel Injection Systems, Fuel Pump & Ignition & Sub-zero Starting Assist (exc. Calif.). Systems Wiring Circuit.(Part 2 of 2):

Electrical Diagrams

IȊ%Fig. 32ab Emission Control & Fuel Injection Systems, Fuel Pump & Ignition & Sub-zero Starting Assist (exc. Calif.). Systems Wiring Circuit.(Part 1 of 2):

i�%Fig. 32bb Emission Control & Fuel Injection Systems, Fuel Pump & Ignition & Sub-zero Starting Assist (exc. Calif.). Systems Wiring Circuit.(Part 2 of 2):

i�%Fig. 32bb Emission Control & Fuel Injection Systems, Fuel Pump & Ignition & Sub-zero Starting Assist (exc. Calif.). Systems Wiring Circuit.(Part 2 of 2):
