Electric Load Sensor: Service and Repair

***UPDATED BY TSB #1503186, OCTOBER 3, 1986

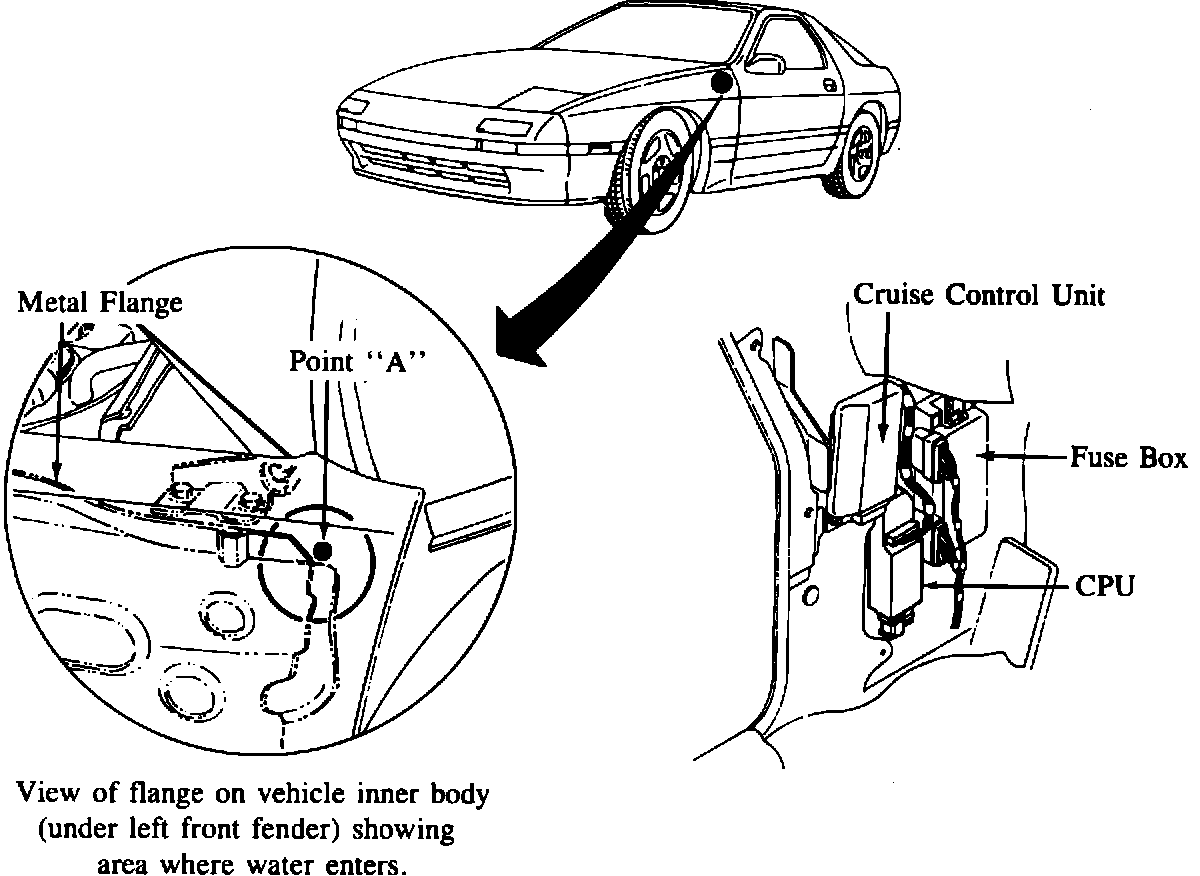

Some RX-7's have experienced CPU damage caused by water leakage. If this is suspected as a possible source of CPU problems and symptoms such as the following are occurring, refer to TSB #1503186:

1. Erratic, improper or no "BEEP" warning signals.
2. Erratic or improper operation of turn signals and/or emergency flashers.
3. Horn does not operate or operates erratically.
