Trailing Side

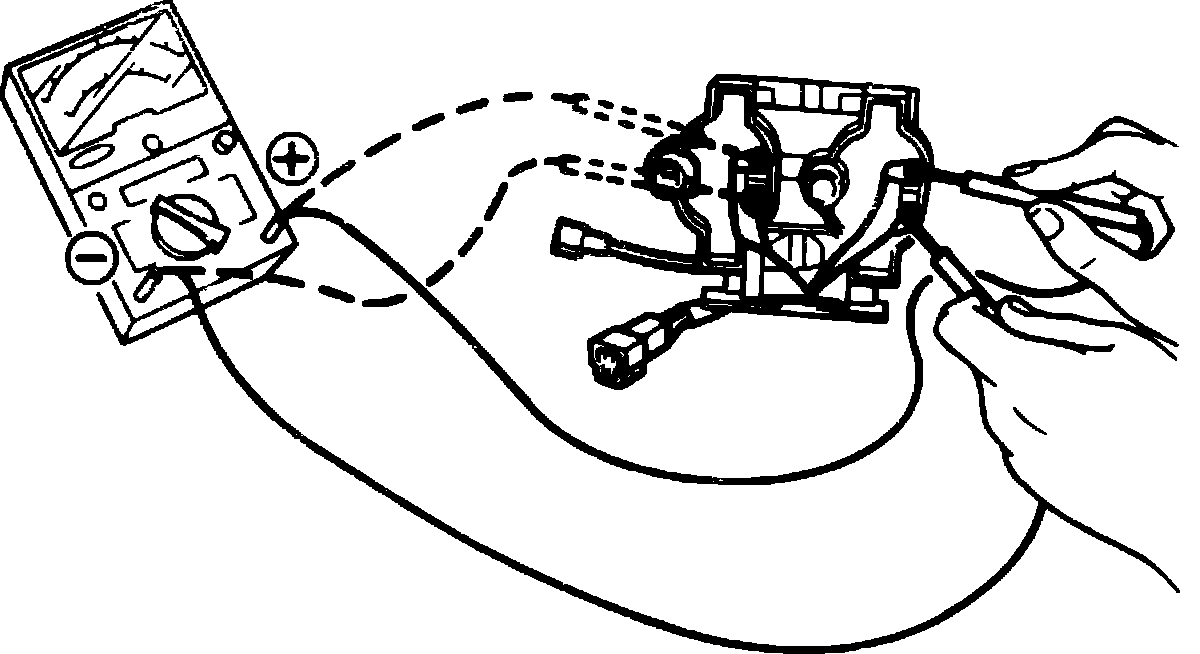

Fig. 4 Testing trailing side coil:





1. Disconnect battery ground cable.
2. Connect ohmmeter, Fig. 4.
3. Check resistance of coil.
4. If resistance is not .2---1 ohm, replace coil.
