Sunroof - Deflector Link Modified

Category 14
Applicable Model/s 1986-87 RX-7 (With Sunroof)
Subject

MODIFIED DEFLECTOR LINK
Bulletin No. 040/86
Issued 11/25/86
Revised

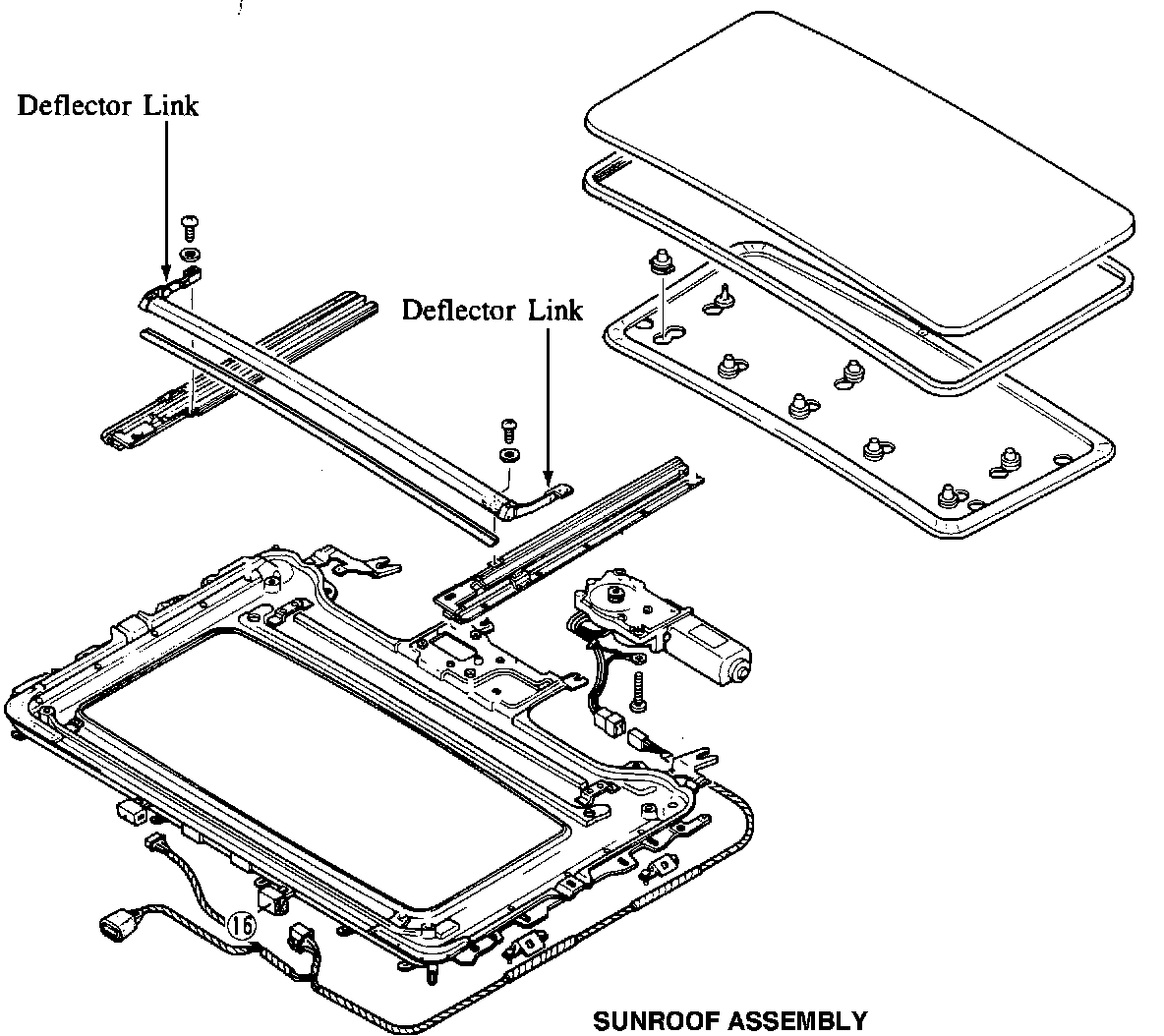

SUNROOF ASSEMBLY:




VIN OF PRODUCTION:




DESCRIPTION

The sunroof deflector link has been modified for smoother operation and improved durability. The modification consists of a change in the configuration and material of the link.

PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

FB03 69 846B FB03 69 846A Deflector Link (R) NEW --> OLD

FB03 69 847B FB03 69 847A Deflector Link (L) NEW --> OLD
