Door Glass Adjuster - Modification

Category 14
Applicable Model/s 1986 RX-7
Subject

DOOR GLASS ADJUSTER MODIFICATION
Bulletin No.. 030/86
Issued 5/15/86
Revised

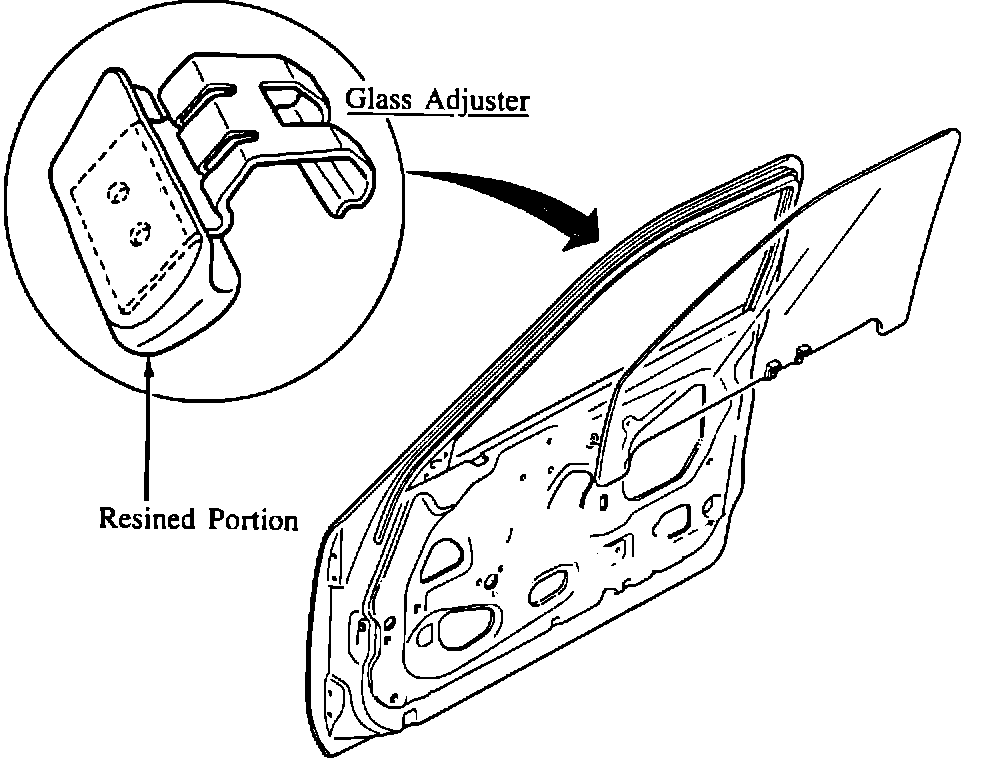

Glass Adjuster Location:




DESCRIPTION

A glass adjuster fits above the upper part of the forward end of the window channel as shown in the illustration. The hardness of the resined portion on this adjuster has been increased to prevent glass from sticking and allow for smoother window operation during high-speed driving.
VIN OF PRODUCTION CHANGE

1986 RX-7: JM1FC331 G0120343 December, 1985

PARTS INFORMATION

PART NUMBER

NEW OLD DESCRIPTION INTERCHANGEABILITY

FB01 58 606A FB01 58 606 Glass Adjuster NEW to OLD
