Carburetor

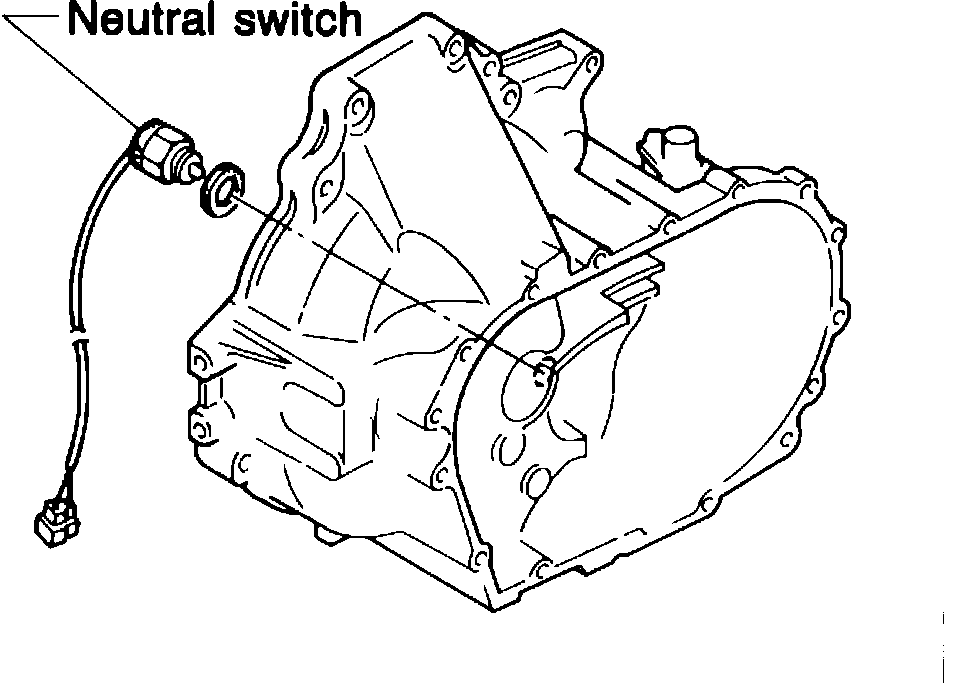

Fig. 23 Neutral Switch.:
Fig. 22 Connecting A Circuit Tester To Neutral Switch, M/T.:

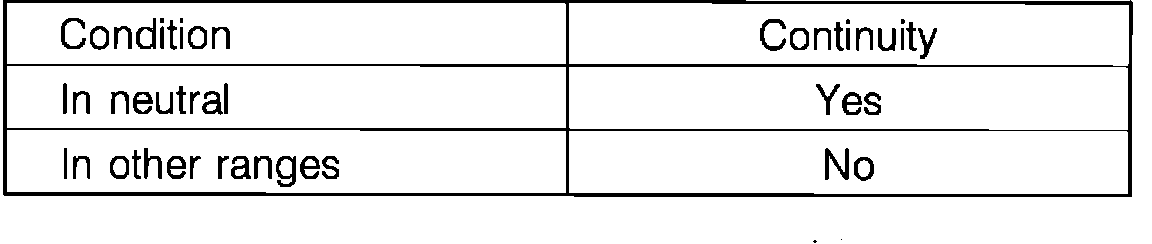

Fig. 24 Neutral Switch Continuity Chart, M/T.:
1.
Disconnect the
neutral switch connector.
2.
Connect a circuit tester to the
neutral switch,
Fig. 22, and then check the continuity between the switch terminals
Fig. 24.
