Step 2

ASSEMBLY-STEP 2
Assemble in the numbered order shown in the image.




Oil Seal (differential)

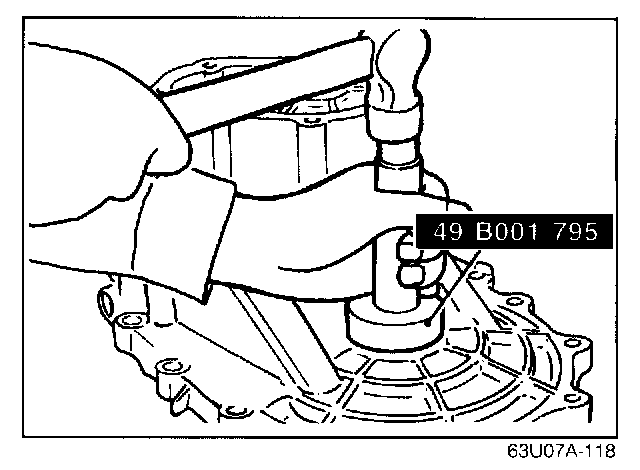

Tap the differential oil seals into the transaxle case with the oil seal installer (49 B001 795).

Bearing Outer Race




1. Install the selected adjustment shims and the diaphragm spring into the transaxle case.

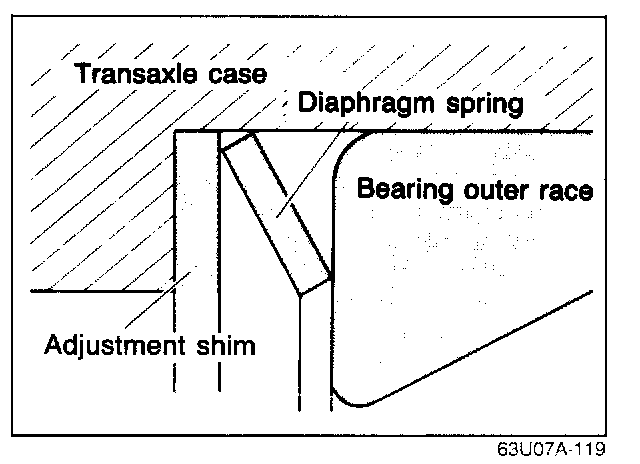

CAUTION: Install the diaphragm spring as shown in the image.




2. Install the bearing outer races into the transaxle case and clutch housing.

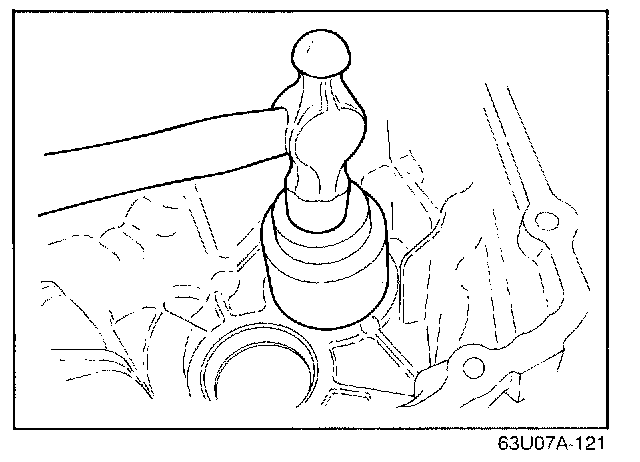

3. Use a suitable pipe and a hammer to tap the outer races in until they are seated.
