Crankshaft Position Sensor: Testing and Inspection

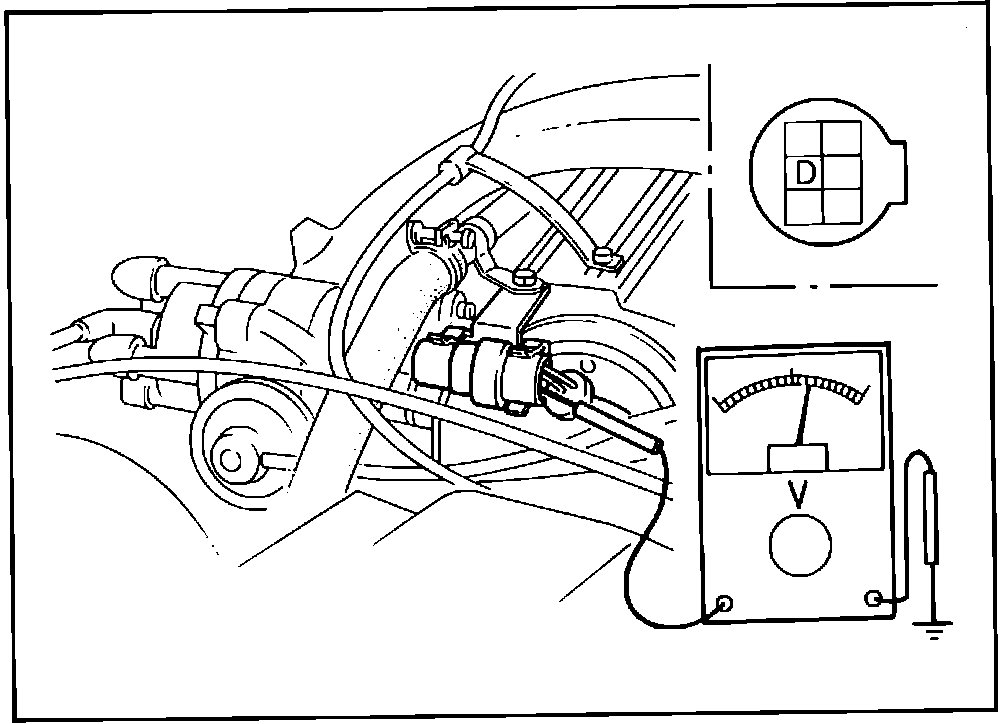

Fig. 7 Number One Cylinder Sensor Inspection:
1.
Remove rubber boot from distributor connector.
2.
Turn
ignition switch to ``On.''
3.
Using voltmeter, ensure that there is battery voltage at d terminal (R)
Fig. 7..
4.
Start engine and increase engine speed.
5.
Ensure voltage at terminal D (LgB) is 2-3 volts.
