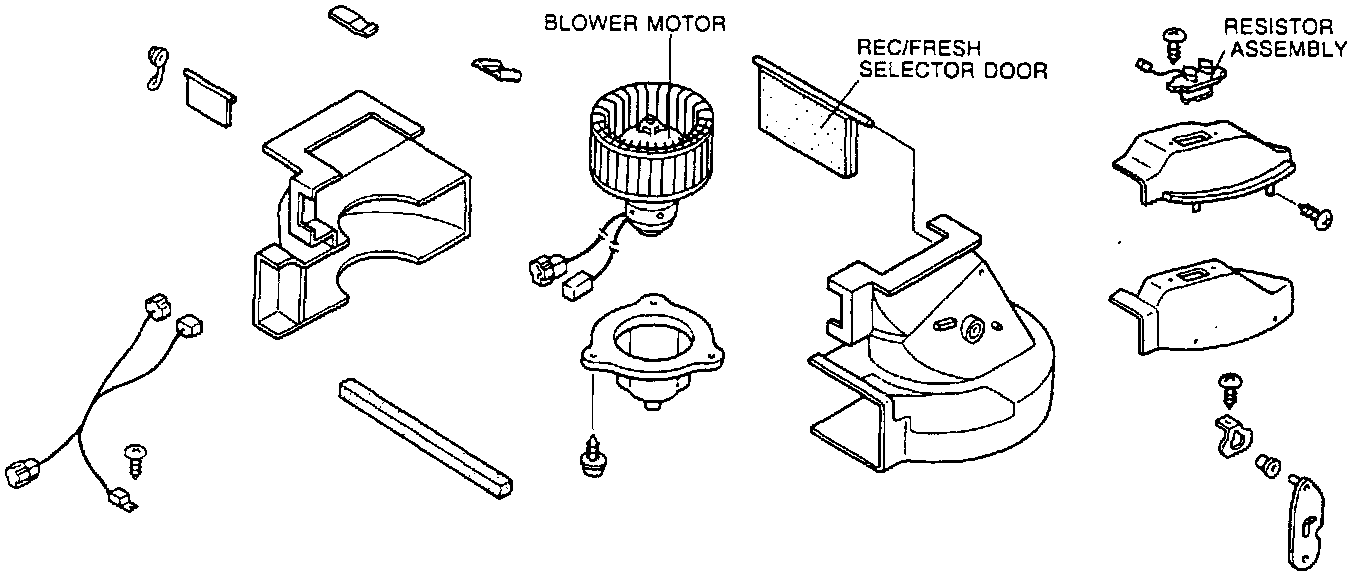

Blower Motor Resistor: Service and Repair
REMOVAL AND INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the glove box and lower panel, if required.
3.
Disconnect the
blower motor resistor wire connector.
4.
Remove the attaching screw and remove the resistor.
5.
Install in reverse order.
