Torque Specifications

Intake:

Exhaust Manifold:

Upper Engine:

Head Bolt Torque Sequence:

Apply engine oil to the bolt threads and seat faces.

Tighten the cylinder head bolts in two or three steps in the order shown in the figure.
Tightening torque:
80-86 Nm (59-64 ft-lb)

Timing Components:

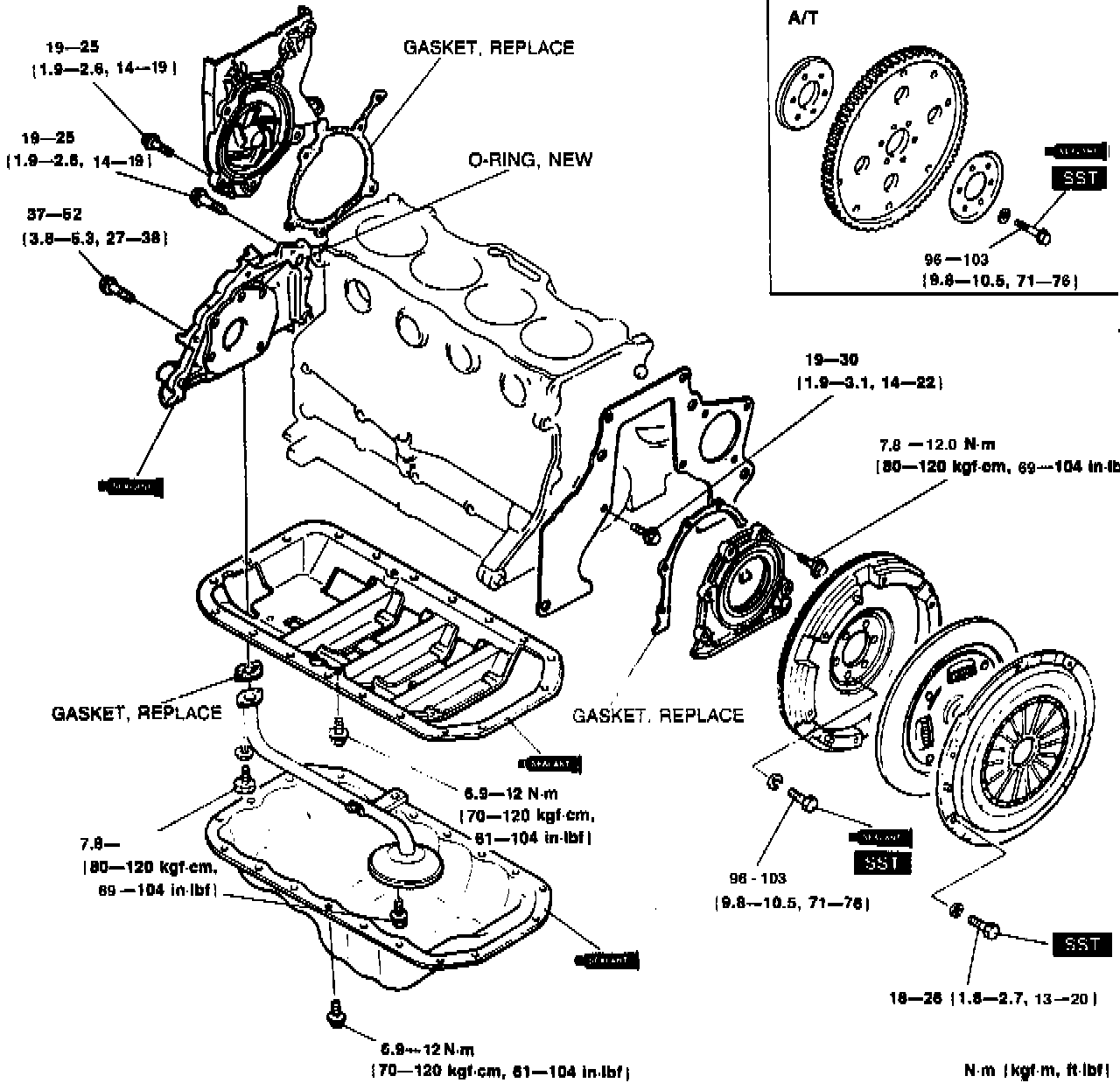

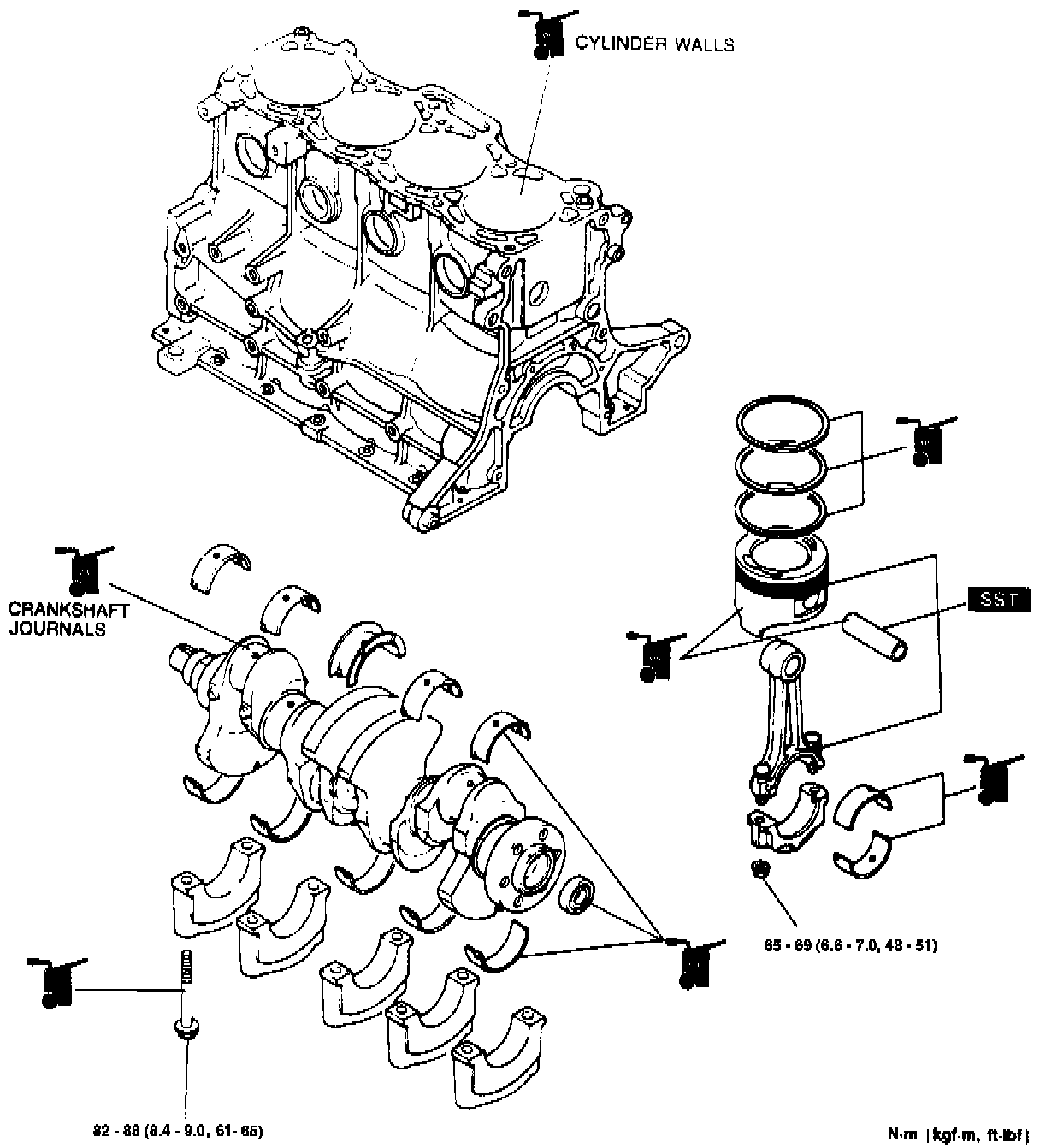

Lower Engine:
