System Testing - Turbo

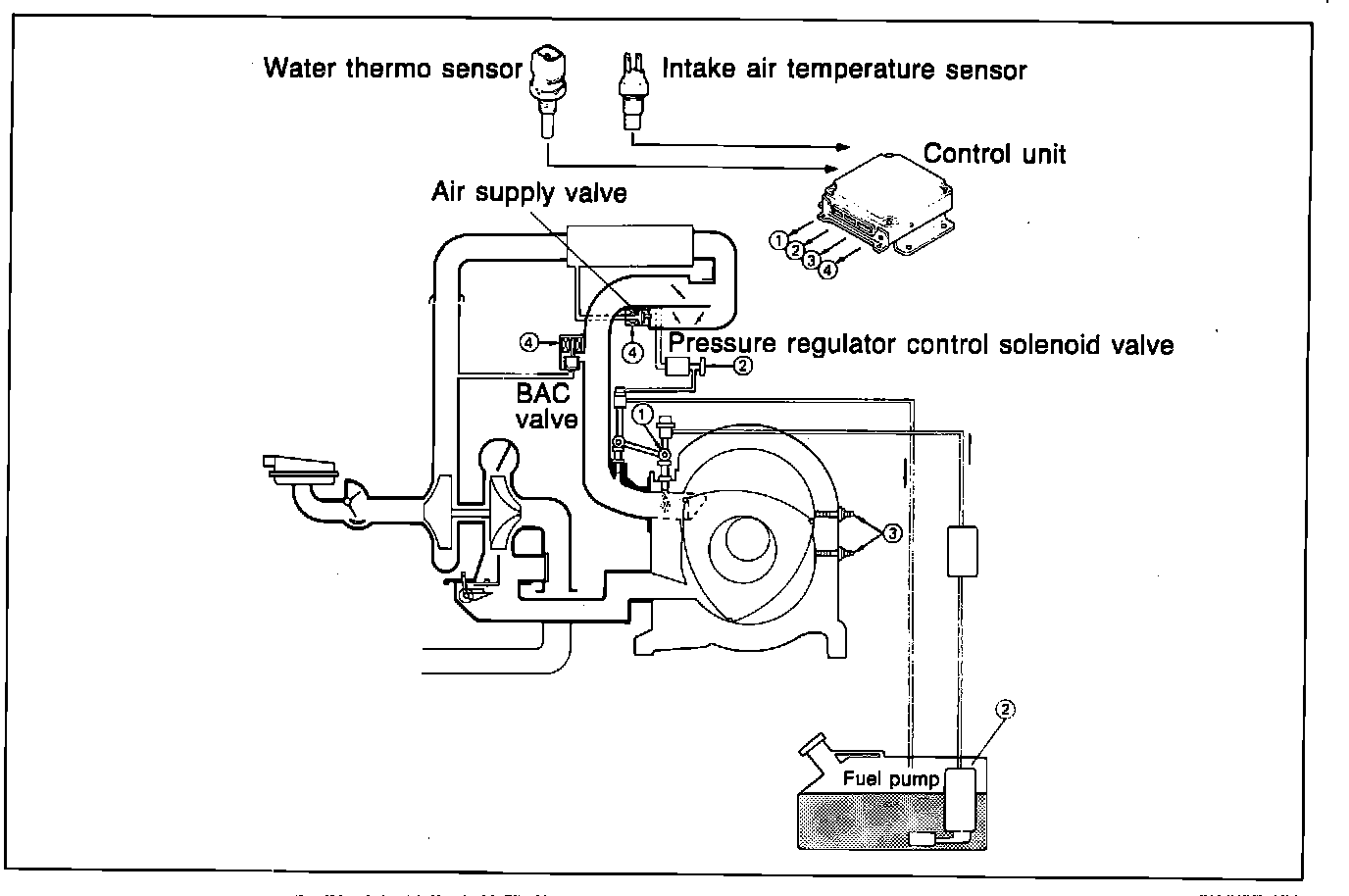

Fig. 28 Hot start assist system.:

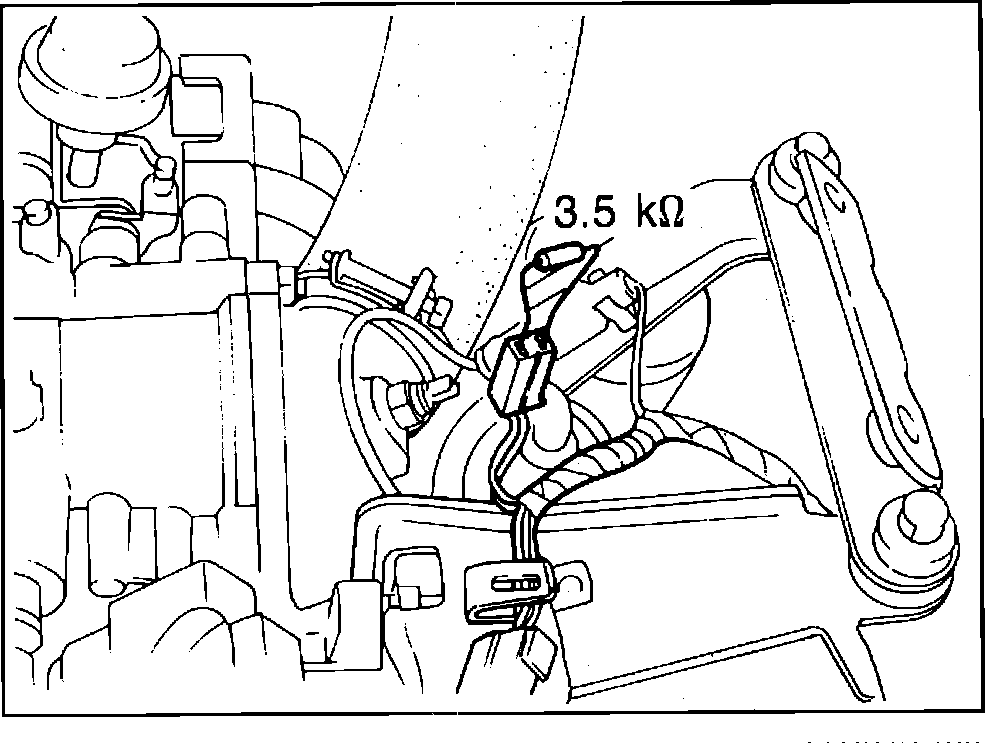

Fig. 19 Connecting resistor.:

1. Disconnect electrical connector at intake air temperature sensor, the intercooler must be removed to gain access to the connector.
2. Connect a 3.5k ohm resistor to terminals of sensor connector Fig. 19.

Fig. 29 Engine speed chart.:

3. Connect tachometer to engine.
4. Start engine and ensure engine speed is as in Fig. 29.

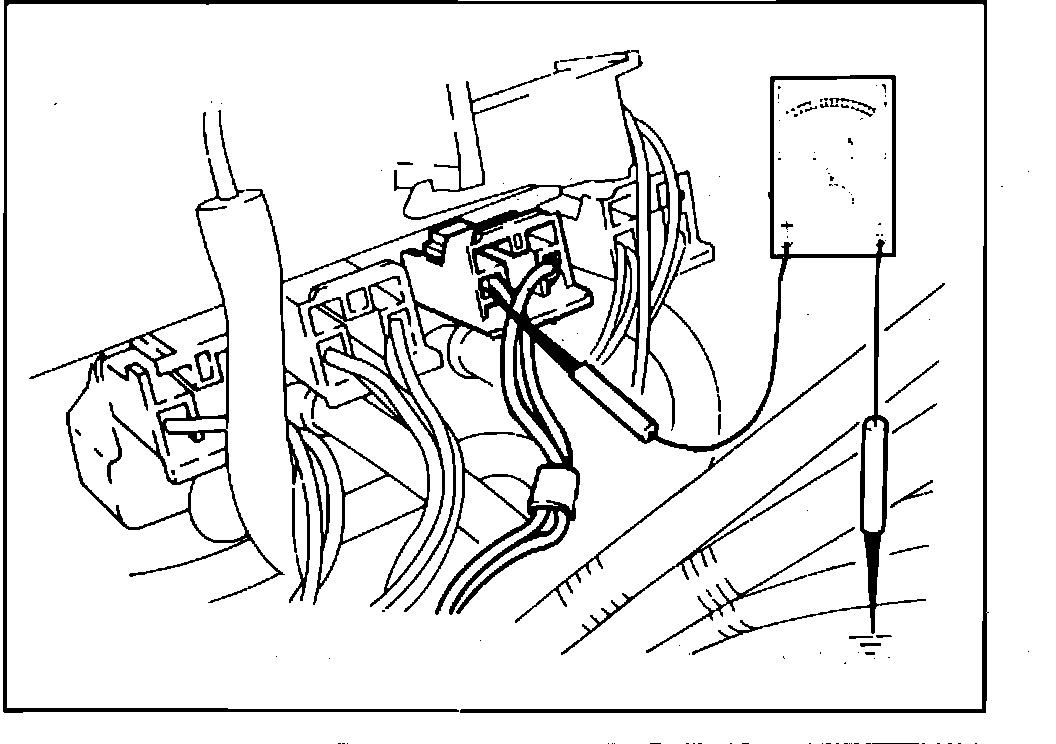

Fig. 30 Connecting voltmeter to pressure regulator control solenoid valve:

5. Proceed as follows:
a. Stop engine and connect voltmeter to pressure regulator control solenoid valve Fig. 30.
b. Start engine and ensure voltmeter indicates less than 2 volts for 50 seconds after engine is started, then rises to approximately 12 volts.
