Electric Load Sensor: Testing and Inspection
Fig. 86 E/L control unit terminal identification.:
1.
Connect voltmeter between E/L control unit and ground,

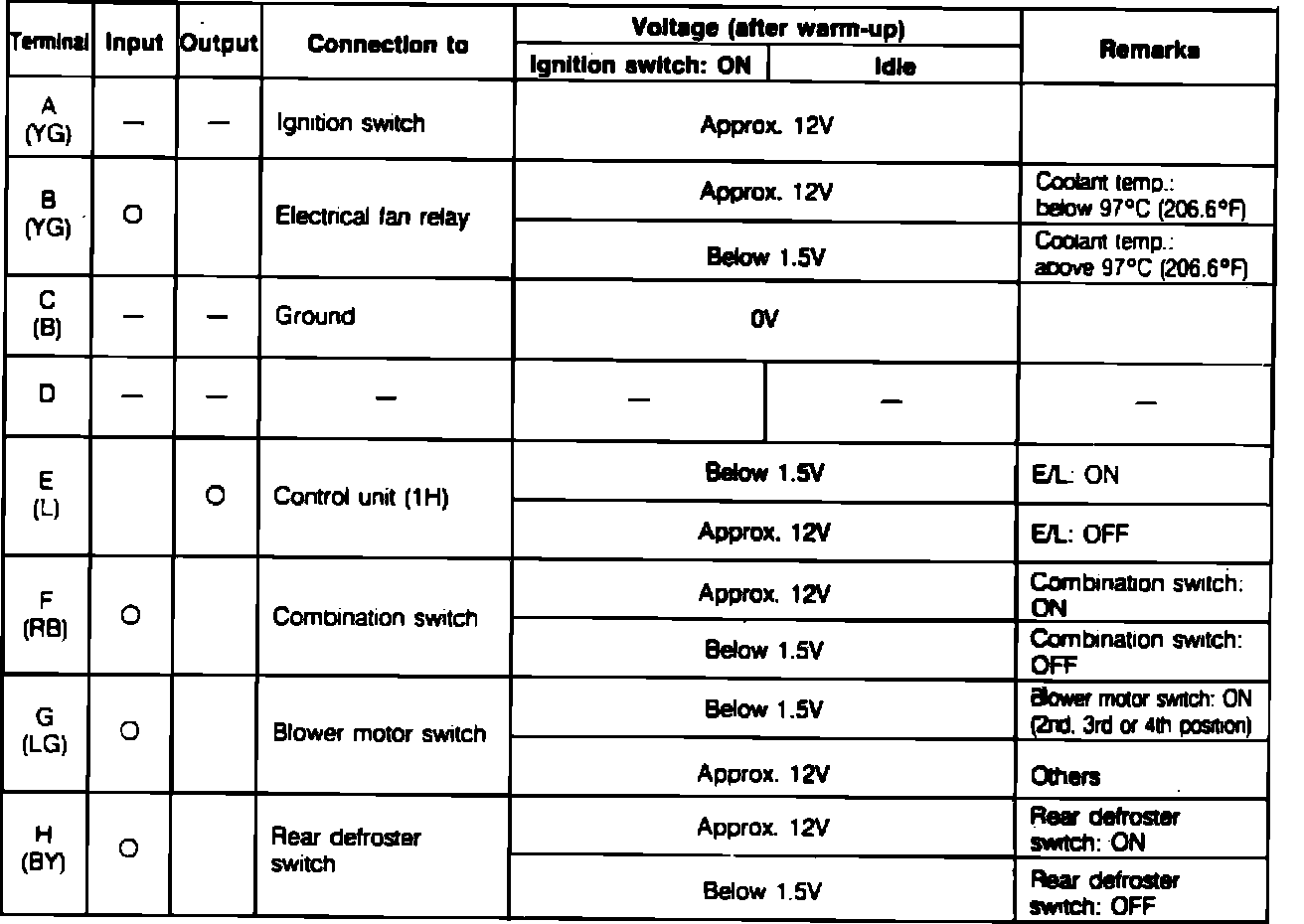

Fig. 86.Fig. 88 E/L control unit terminal voltage specification chart. Turbo:
2.
Start engine and check terminal voltages,
Fig. 88.
