Inspection of Knock Sensor

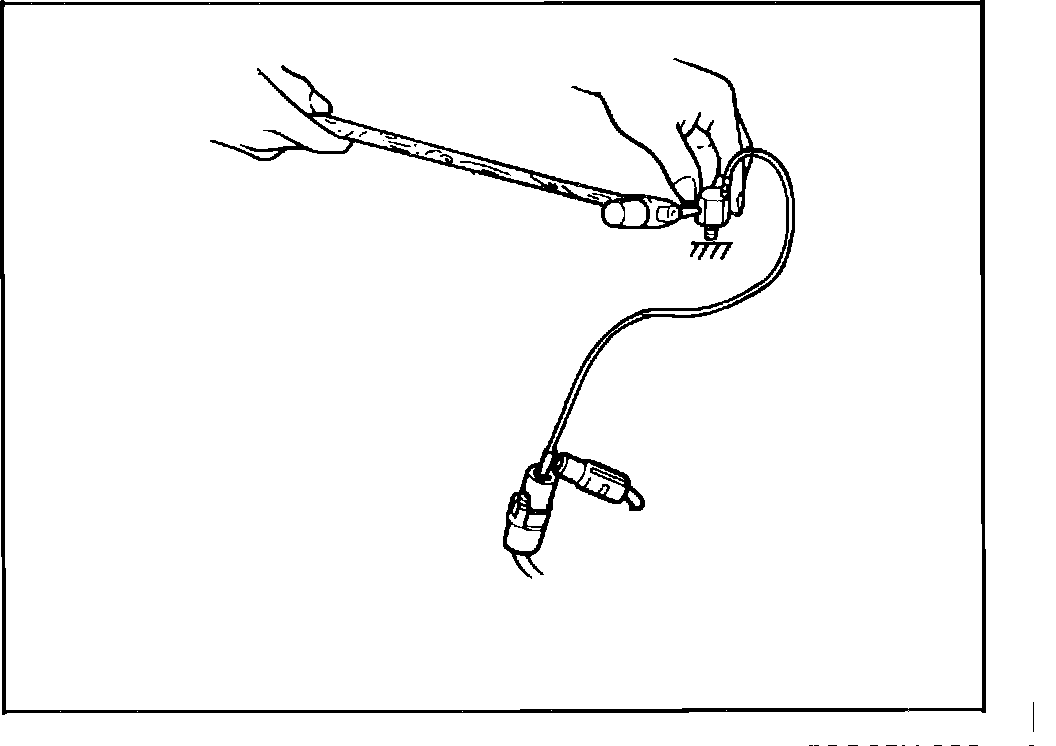

Fig. 27 Testing knock control sys. with substitute knock sensor:
1.
Check the retard function.
2.
If the ignition timing does not retard, go to next step.
3.
Disconnect the
knock sensor connector.
4.
Connect a good
knock sensor to the vehicle and ground the sensor
Fig. 27.
5.
Tap the sensor and make sure the ignition timing retards.
6.
If the retard operates, replace the
knock sensor.
