Fluid - M/T: Service and Repair
Replacement 1.
Park the vehicle on level ground.
2.
Remove the speedometer driven gear.
3.

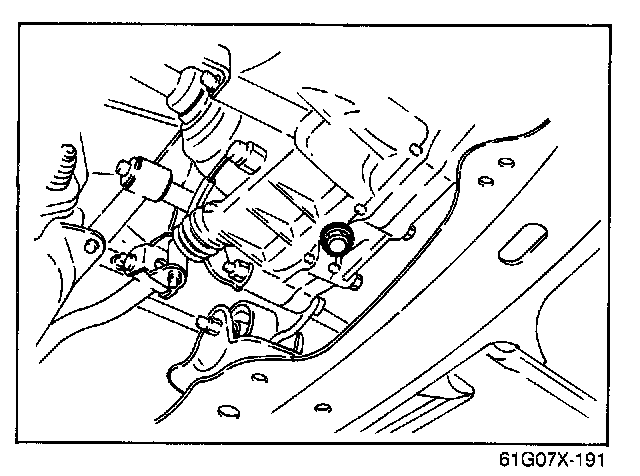

Remove the drain plug, and drain the oil.
4.

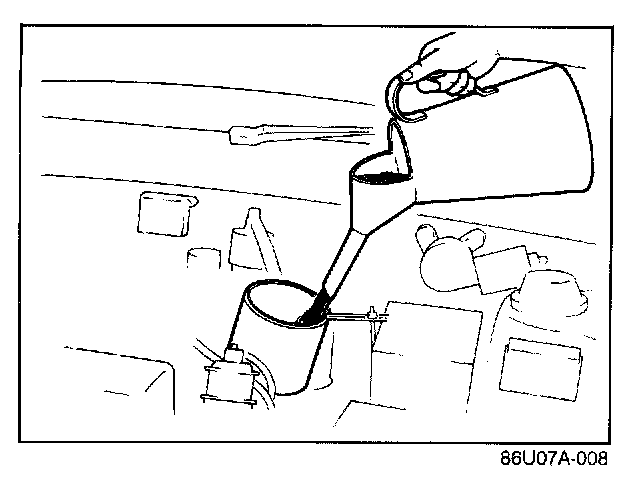

Replace the drain plug, and add the necessary amount of the specified oil through the speedometer gear case hole.
Specified oil Type
A.T.F.: DEXRON II or M2C33-F
Capacity:
Non-Turbo.
3.35 liters (3.6 US qt, 3.0 Imp qt)
