Ignition System: Description and Operation

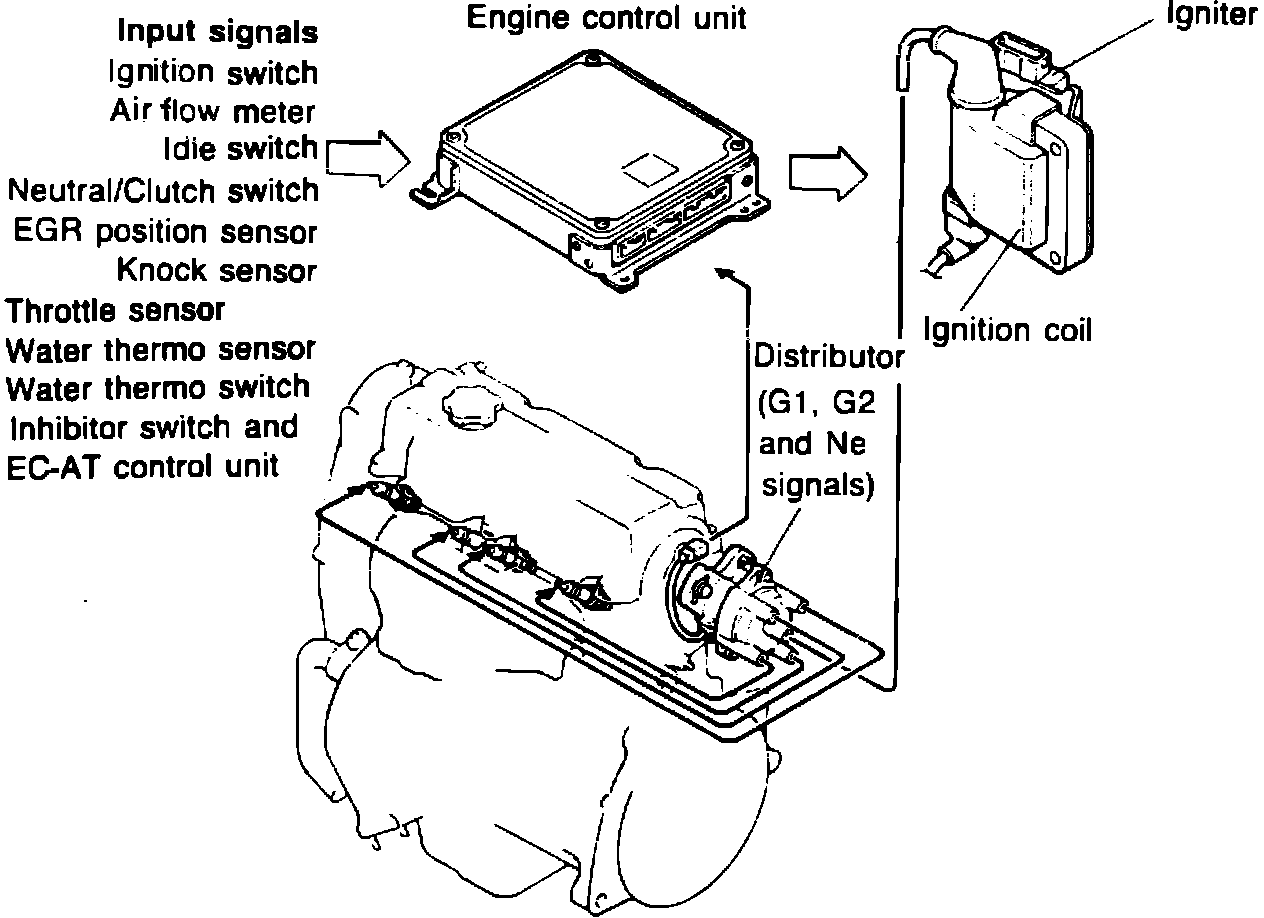

ELECTRONIC SPARK ADVANCE SYSTEMFig. 121 Electronic spark advance control system. Turbo:
The breakerless
ignition system consists of an electronic control module called an
igniter, a pickup coil and reluctor, an
ignition coil, and the
distributor. The igniter is mounted inside the distributor with the pickup coil.
