Pick-Up Coil: Testing and Inspection

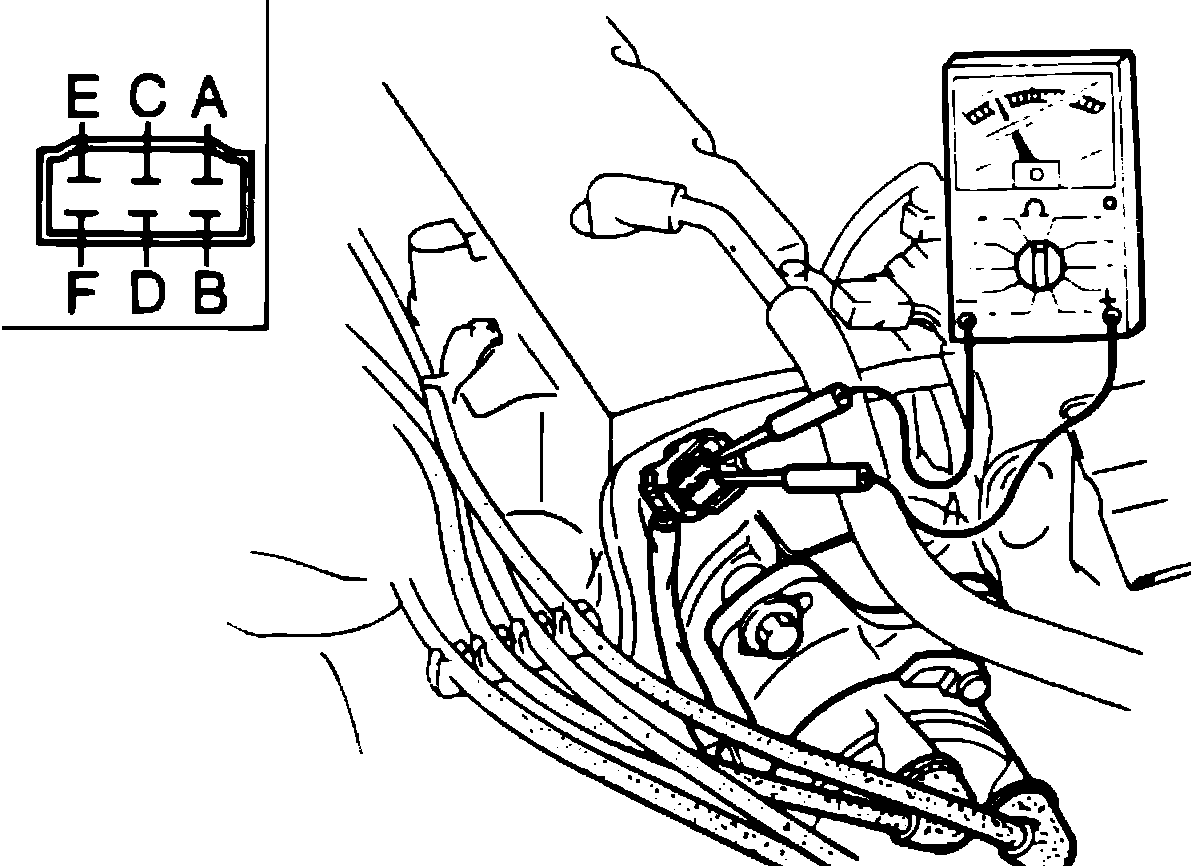

Fig. 49 Distributor connector terminal identification. Turbo:
1.
Disconnect
distributor electrical connector.
2.
Connect ohmmeter to terminals of connector,
Fig. 49. 3.
Check resistance between terminals. At 68°F, there should be 210---260 ohms between terminals A and B, between terminals C and D and between terminals E and F.
4.
If resistance is not as described, replace
distributor.
