Power Steering Pressure Switch: Testing and Inspection

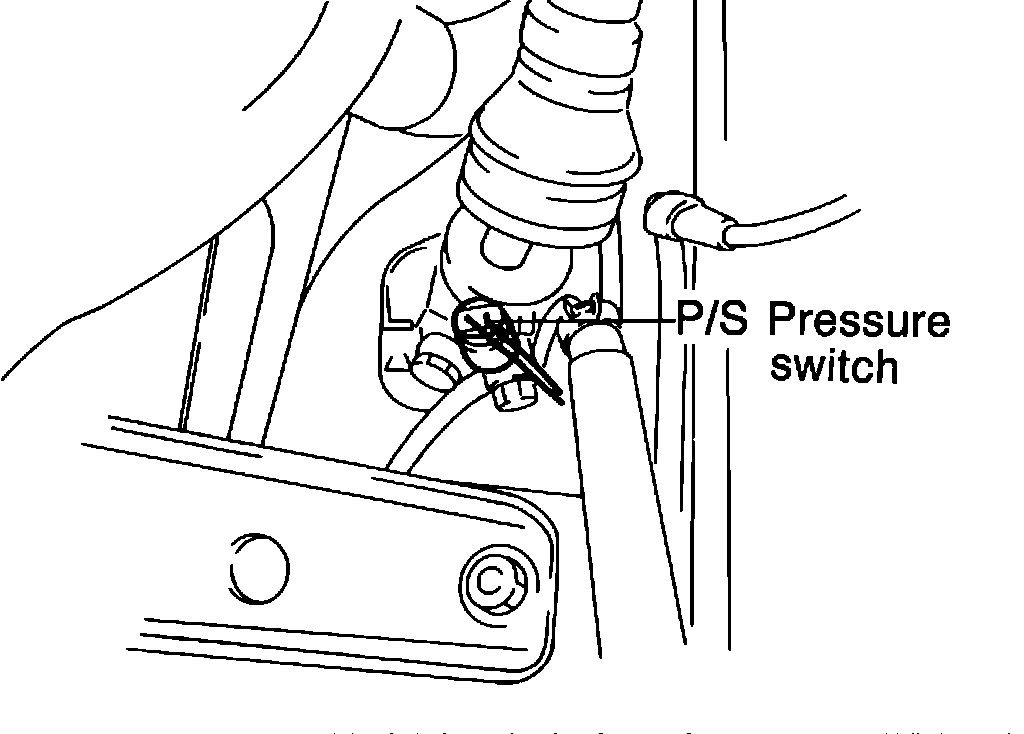

Fig. 24 Power Steering Pressure Switch Testing:
1.
Disconnect
power steering pressure switch connector.
2.
Connect ohmmeter to switch
Fig. 24.
3.
Start engine and check continuity of switch while turning steering wheel at idle. There should be continuity while turning and there should be no continuity when not turning.
