Power Steering Hose - Revised Ground Bolt Length

87mazda05

Category Applicable Model/s Subject Bulletin No. 005/87
10 (See Below) POWER STEERING HOSE Issued 11/19/87
Revised 1/22/88




DESCRIPTION

On 1988 626/MX-6 (Turbo, w/o A/C, w/o 4WS) it has been found that the power steering hose between the fluid reservoir and the steering gear may contact the engine mount bracket. This bracket is located near the strut tower on the right front inner fender.

If you encounter this problem on a new or already delivered vehicle within the VIN range listed, please refer to the repair procedure shown in this bulletin.



REPAIR PROCEDURE

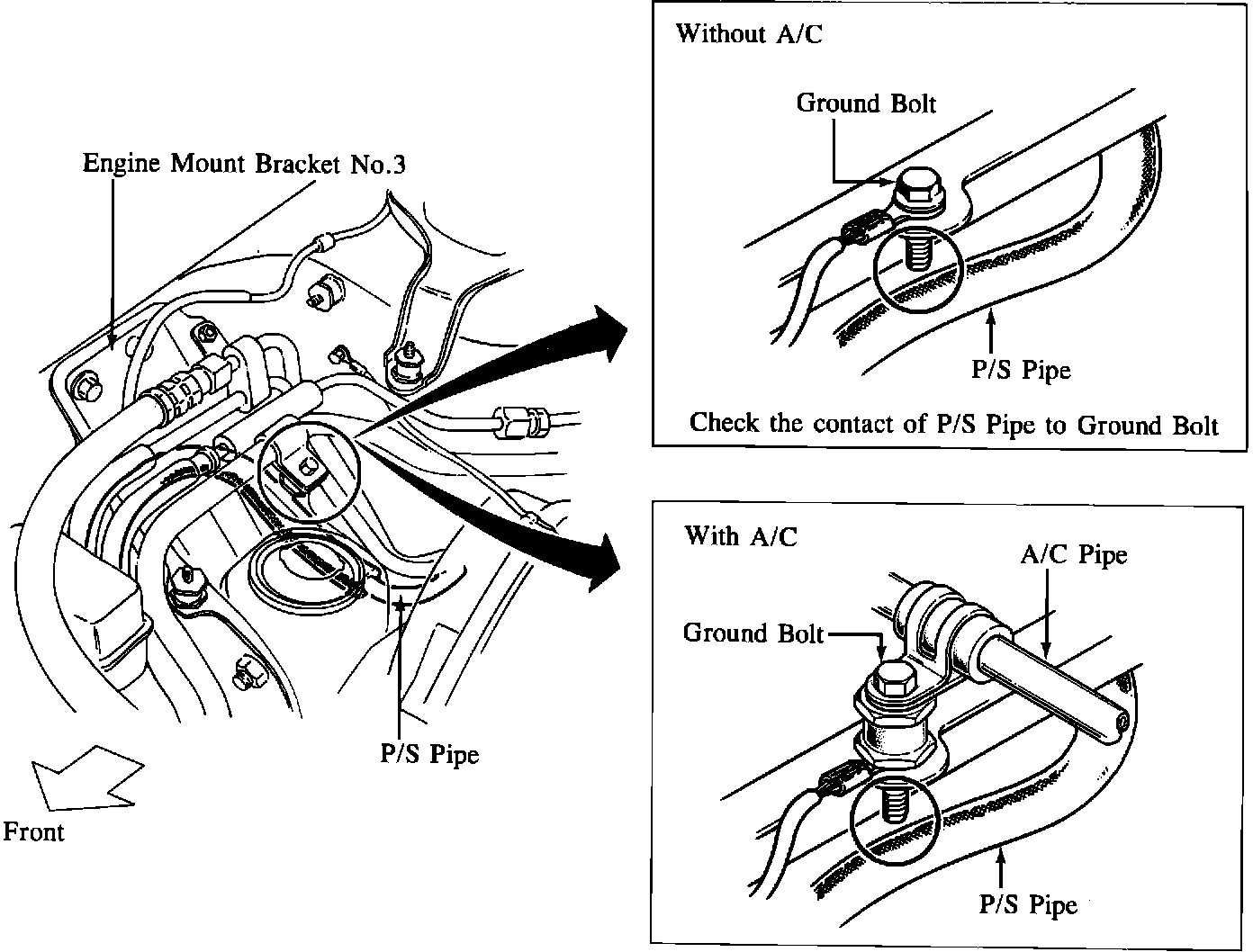

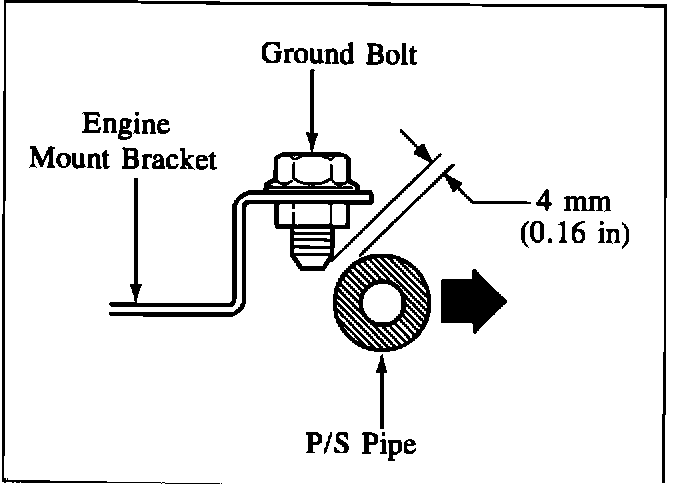

Check the distance between the power steering hose and ground bolt at the location shown. If the distance is less than 4 mm (0.16 in), move the hose away from the bracket to provide adequate clearance.

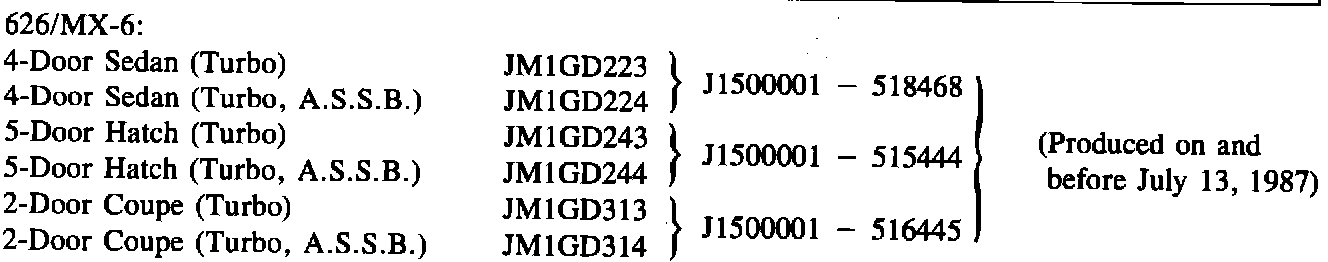

VIN OF AFFECTED VEHICLES
NOTE:

1. A.S.S.B. - Automatic Shoulder Seat Belt

2. The length of the ground bolt has been shortened from 16 mm to 12 mm at the production line since July 14, 1987. *

Also, the modification has been made on the vehicles with VIN starting 1YVGD31A J5100001, 1YVGD31B J5100001, 1YVGD31C J5100001 (produced by MMUC). Therefore, these vehicles are no longer affected.


WARRANTY INFORMATION

Comment Code: 99
Damage Code: 99
Process No.: B7044A
Part No. of Main Cause: 997960612
Operation No: XX0179RX
Labor Hour: 0.2 Hr.


* The revised section is indicated by an asterisk. Please replace the original bulletin with this revised bulletin.
