Electric Load Sensor: Testing and Inspection

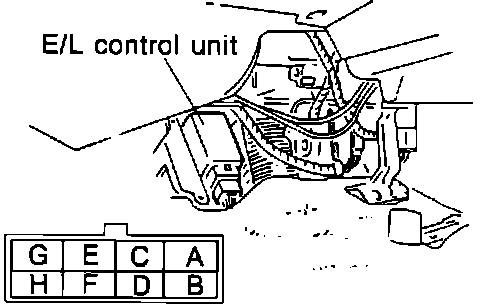

Engine Load Control Unit Location And Terminal Identification:
1.
Connect a voltmeter between the engine load control unit and ground.
2.
Start the engine and check the terminal voltages as described in the chart below.

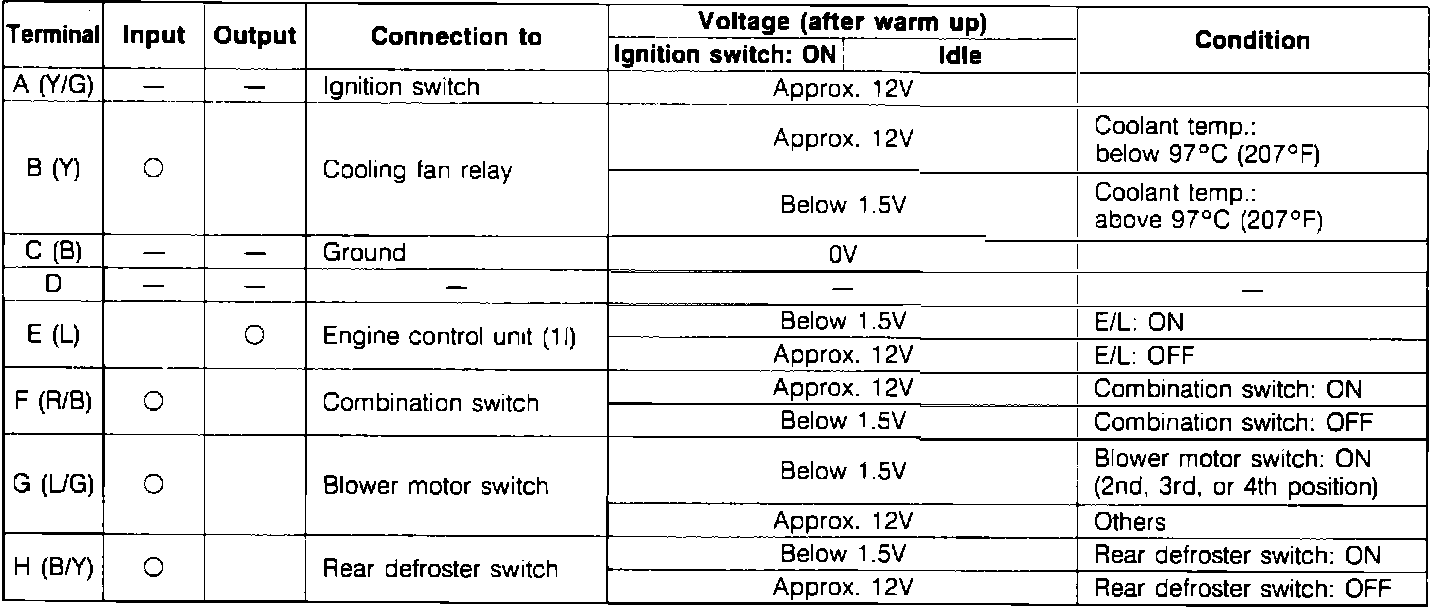

Engine Load Control Unit Chart:
