Ignition System: Locations

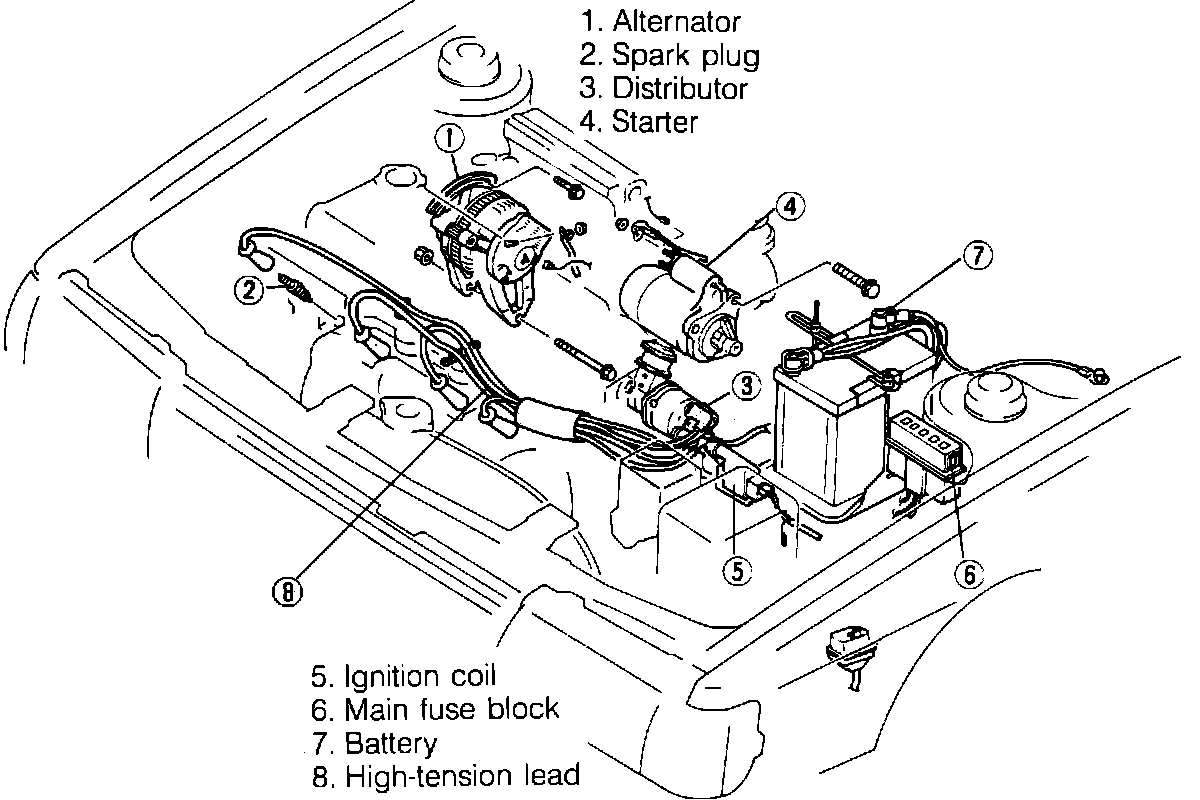

System Components:

DISTRIBUTOR, CAP AND ROTOR
Located on left front end of cylinder head.

IGNITION COIL
Located on left side of engine compartment near battery.

PICK-UP COIL WITH IGNITER
Located in the distributor assembly.

IGNITION WIRES
Routed between coil, spark plugs and distributor cap.

SPARK PLUGS
One per cylinder on front side of cylinder head.

TEST CONNECTOR
Located in left rear corner of engine compartment near battery.
