Compressor Clutch Relay: Testing and Inspection

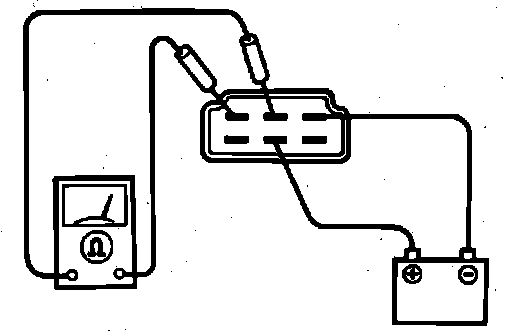

Fig. 8 A/C Relay Test:

1. Connect relay, battery and ohmmeter as in Fig. 8.
2. Ensure there is continuity. Then disconnect battery and ensure there is no continuity. If not as specified, replace relay.
