Electric Load Sensor: Testing and Inspection
1.

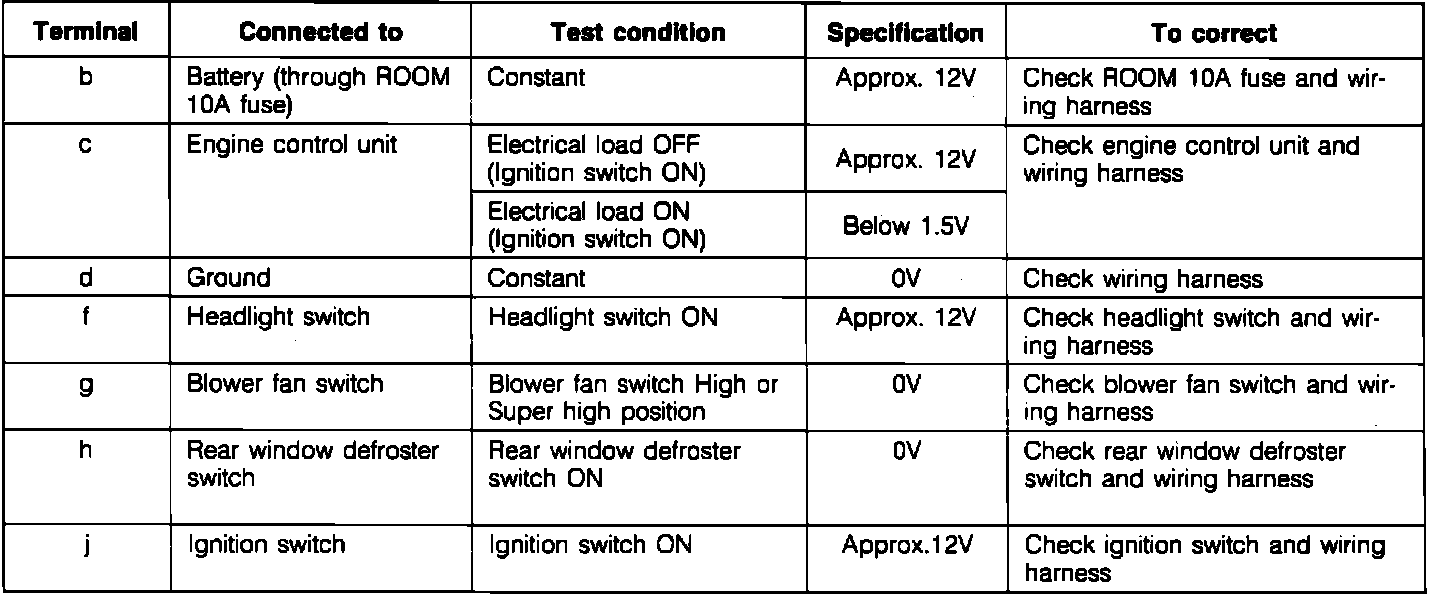

Remove the control unit and check the voltage between terminals of joint box and body ground.
2.
If the terminal inspection results are incorrect, refer to the action column and check the indicated system
3.
If the terminal inspection results are correct but system does not operate, replace the control unit.
Engine Load Control Unit Testing:
