Air Flow Meter/Sensor: Service and Repair

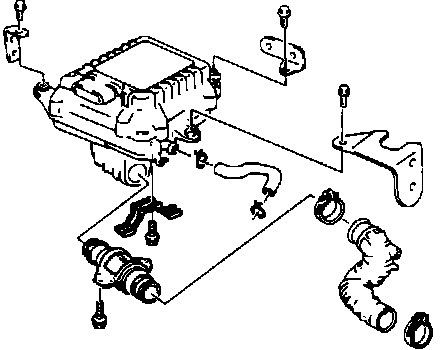

Air Flow Meter Removal:
1.
Disconnect the airflow meter connector.
2.
Remove the air hose to the air pump.
3.
Loosen the air funnel bolt.
4.
Remove the air cleaner and the airflow meter.
5.
Remove the airflow meter.
6.
Install in the reverse order of removal.
